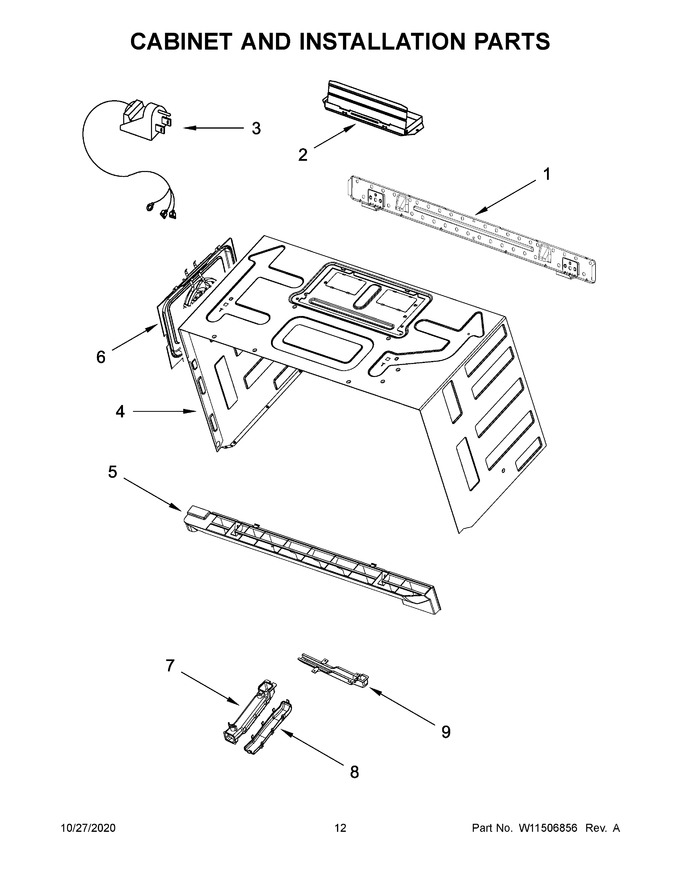

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting			Immediately	$ 24.69
2	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 73.04
3	W10708076		Cord, Power   (Replaces: W10654511)				$ 21.56
4	W11446920		Case, Outer (white)				$ 263.30
5	W10701700		Grille, Vent (white)				$ 82.98
6	WPW10571554		Assembly, Convection Motor And Fan   (Replaces: W10571554)				$ 320.69
7	W10740434		Duct, Cooling (upper)		Appelez-nous	-
8	W10533489		Duct, Cooling (bottom)		Appelez-nous	-
9	W10570212		Air Duct, Turntable Motor		Appelez-nous	-
4A	W11662678		Case, Outer (black)   (Replaces: W11446919)				$ 212.92
5A	W10701701		Grille, Vent (black)				$ 82.85
NI	W10571451		Insulation, Top		Appelez-nous	-
NI	W10509362		Miscellaneous Parts, Cable, Touch Sensor		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10571450		Insulation, Back		Appelez-nous	-
NI	W10902486		Miscellaneous Parts, Cable, Door Control		Appelez-nous	-
NI	W10508741		Miscellaneous Parts, Wire, Door Control Cable				$ 23.57
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 25.08
NI	W11302285		Miscellaneous Parts, Harness, Turntable And Lamp		Appelez-nous	-
NI	W11302360		Miscellaneous Parts, Harness, Main				$ 160.34
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 13.35
NI	W10190018		Miscellaneous Parts, Template, Upper (english & French)			Immediately	$ 7.55
NI	W10190020		Miscellaneous Parts, Template, Upper (english & Spanish)				$ 56.21
NI	W10821385		Miscellaneous Parts, Hardware, Installation			Immediately	$ 103.72
NI	W10571454		Insulation, Bottom		Appelez-nous	-
