SELECT A DIAGRAM

Body Parts


Control Panel & Cooktop


Convection Fan


Door & Drawer Parts


Gas & Burner Parts

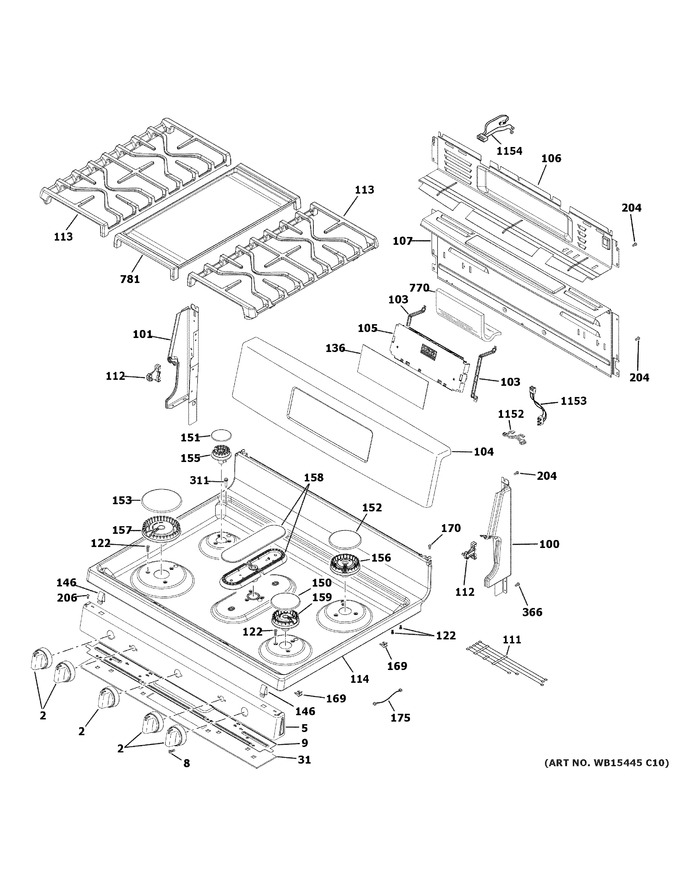

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WS01L13900		Knob Asm   (Replaces: WB03X24818)			Immediately	$ 23.53
5	WB36X24894		Panel And Cover Asm		Appelez-nous	-
8	WB01X26995		Scr 8-18 Ab X 5/16s		Appelez-nous	-
9	WB02K10272		Manifold Support		Appelez-nous	-
31	WB35X24985		Insulation Burner Box		Appelez-nous	-
100	WB07X29143		Dark Dorian End Support Rh		Appelez-nous	-
101	WB07X29144		Dark Dorian End Support Lh		Appelez-nous	-
103	WB34X38000		Bracket Control		Appelez-nous	-
104	WB36X37982		Topaz Backguard Range		Appelez-nous	-
105	WB27X37998		Rc19 Control (flashed)		Appelez-nous	-
106	WB34X24745		Cover Back Upper		Appelez-nous	-
107	WB34X24746		Cover Back Lower		Appelez-nous	-
111	WB18X26980		Electrodes & Harness H.v		Appelez-nous	-
112	WB14K10003		Hinge Range Top		Appelez-nous	-
113	WB31X24736		Grate Asm		Appelez-nous	-
114	WB62X24822		Rangetop & Brkt Asm		Appelez-nous	-
116	WB35X46208		Insulation Cover Upper		Appelez-nous	-
122	WB01X24735		Ckt Screw		Appelez-nous	-
130	WB34X25717		Backguard Eyebrow		Appelez-nous	-
136	WB07X38059		Dark Dorian Gray Overlay Rc19		Appelez-nous	-
146	WB02X26569		Clip Rangetop		Appelez-nous	-
150	WS01F02536		Asm Burner Cap (9500)   (Replaces: WB29K10023)			Immediately	$ 17.47
151	WB16X28654		Asm. Cap, Burner Small V2				$ 28.45
152	WS01F03894		Asm Burner Cap (12000)   (Replaces: WB29K10024)			Immediately	$ 23.82
153	WS01F02544		Cap Burner Xl   (Replaces: WB28K10222)			Immediately	$ 18.43
155	WB16X24721		Burner, Small V2		Appelez-nous	-
156	WB16X24723		Burner, Large V2		Appelez-nous	-
157	WB16X24722		Burner, Xl V2		Appelez-nous	-
158	WS01F02148		Oval Burner Asm   (Replaces: WB16K10076)			Immediately	$ 75.70
159	WB16X24724		Burner, Medium V2		Appelez-nous	-
169	WB02X24976		Clip, Igniter V2		Appelez-nous	-
170	WB1X5754		Screw 8-18 Abt 1/2 S		Appelez-nous	-
175	WB18X24748		Harness Ground		Appelez-nous	-
204	WS01A00654		Screw (blk)   (Replaces: WB1K42)				$ 15.88
206	WS01A01151		Screw   (Replaces: WB01K10091)			Immediately	$ 12.71
311	WB02X24790		Bumper		Appelez-nous	-
366	WB02X32443		Scr 8-18 B Hxw 1/4s Uh		Appelez-nous	-
770	WB35X25588		Insulation Control		Appelez-nous	-
781	WS01F11669		Griddle Aluminum   (Replaces: WB31X24738)			Immediately	$ 112.81
1151	WB18X38047		Harness Main		Appelez-nous	-
1152	WB18X38046		Harness Backguard		Appelez-nous	-
1153	WB18X38049		Harness Interface		Appelez-nous	-
1154	WB18X38061		Harness Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
