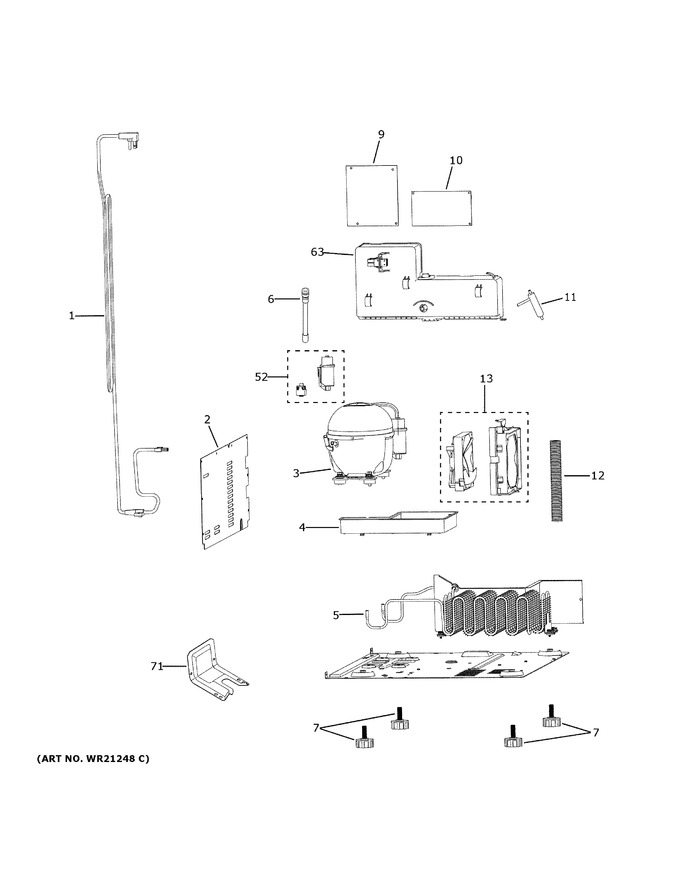

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WR55X33805 | Power Cord |
|
- | |||||
| 2 | WR13X34505 | Machine Access Cover |
|
- | |||||
| 3 | WR87X32025 | Compressor |
|
- | |||||
| 4 | WR14X34506 | Drip Pan |
|
- | |||||
| 5 | WR87X34507 | Condenser |
|
- | |||||
| 6 | WR87X30876 | R600 Process Valve W/ Red Cap |
|
- | |||||
| 7 | WR01X27781 | Leveling Leg Lh |
|
$ 10.12 | |||||
| 9 | WR55X34531 | Main Control Board |
|
- | |||||
| 10 | WR55X31984 | Refrigerator Power Supply Board |
|
- | |||||
| 11 | WR87X33866 | Drier Filter |
|
- | |||||
| 12 | WR01X34508 | Drain Tube |
|
- | |||||
| 13 | WR87X34926 | Condenser Fan & Bracket Asm |
|
- | |||||
| 52 | WR87X33865 | Compressor Electricals |
|
- | |||||
| 63 | WR13X34668 | Control Box And Cover |
|
- | |||||
| 71 | WR01X34846 | Anti-tip Bracket Freestanding |
|
- |
