SELECT A DIAGRAM

Body Parts

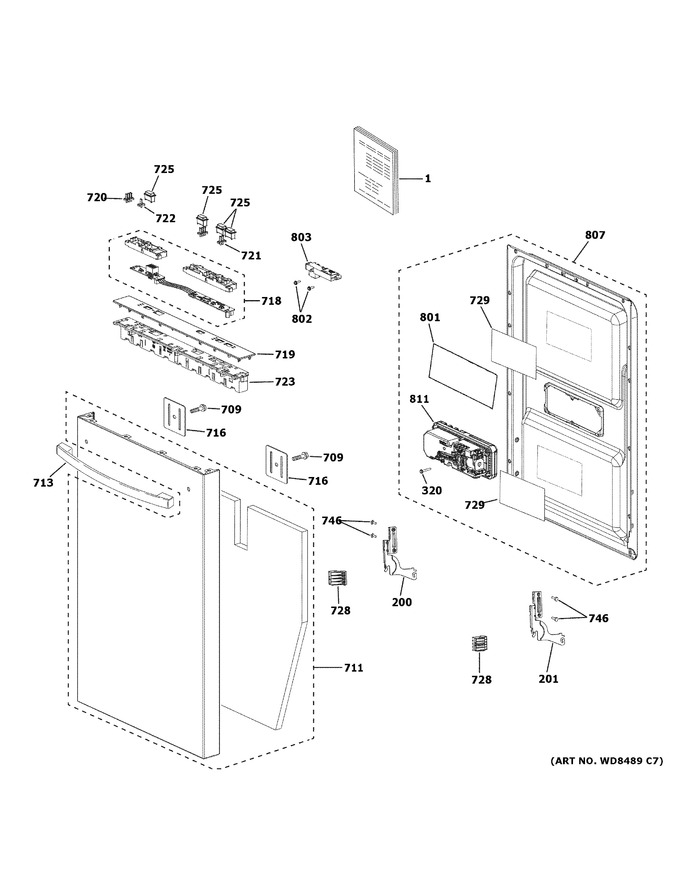

Escutcheon & Door Assembly


Motor-pump Mechanism


Rack Assemblies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30895		Pm Mini-manual		Appelez-nous	-
1	31-31590		Pm Install Instructions		Appelez-nous	-
1	49-55124		Pm Owners Manual		Appelez-nous	-
200	WD01X24738		Hinge Mechanism Lh		Appelez-nous	-
201	WD01X24739		Hinge Mechanism Rh		Appelez-nous	-
320	WD02X24690		Screw		Appelez-nous	-
709	WD02X25064		Handle Screw		Appelez-nous	-
711	WD27X25065		Stainless Steel Outer Door Panel Asm		Appelez-nous	-
713	WD09X27342		Stainless Steel Door Handle		Appelez-nous	-
716	WD01X25062		Handle Bracket		Appelez-nous	-
718	WD21X24701		Ui Control Asm		Appelez-nous	-
719	WD34X24732		Console Cover Gdt Ss		Appelez-nous	-
720	WD21X24669		Light Pipe 3		Appelez-nous	-
721	WD21X24668		Light Pipe 2		Appelez-nous	-
722	WD21X24667		Light Pipe 1		Appelez-nous	-
723	WD12X24730		Console		Appelez-nous	-
725	WD09X24601		Buttons Dorian Grey		Appelez-nous	-
728	WD01X24735		Door Supporting Block		Appelez-nous	-
729	WD01X25807		Door Supporting Foam		Appelez-nous	-
746	WD02X24617		Screw		Appelez-nous	-
801	WD31X24638		Detergent Module Cover		Appelez-nous	-
802	WD02X24697		Screw Latch Asm		Appelez-nous	-
803	WD12X24644		Door Latch		Appelez-nous	-
807	WD31X24740		Inner Door Asm		Appelez-nous	-
811	WD12X24637		Detergent Module		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
