Body Parts (1)
Body Parts (2)
Escutcheon & Door Assembly
Installation Parts
Lower Rack Assembly
Motor, Sump & Filter Assembly
Optional Accessories
Upper Rack Assembly
SELECT A DIAGRAM
New Model Search:

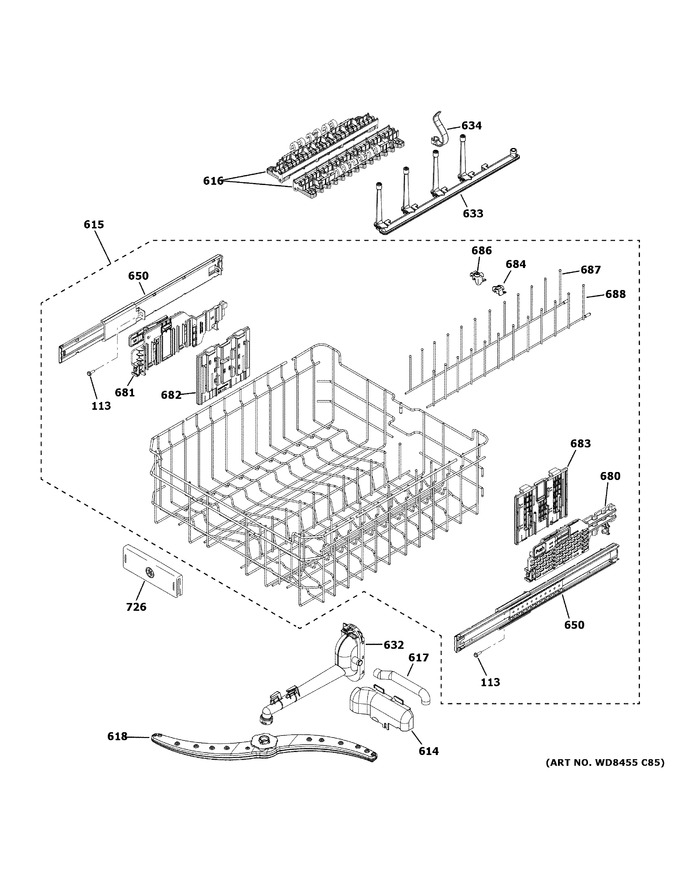

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 113 | WG04A00176 | Screw 8-16 Hxw 1/2 Ss (Replaces: WD02X10067) |
|
$ 3.57 | |||||
| 614 | WD24X20263 | Cover Bottle Blaster |
|
- | |||||
| 615 | WD28X25628 | Complete Upper Rack Asm |
|
- | |||||
| 616 | WD12X25961 | Stem Safe Shelf Asm |
|
- | |||||
| 617 | WD24X20262 | Hose Bottle Blaster |
|
- | |||||
| 618 | WD22X26622 | Mid Spray Arm Asm |
|
- | |||||
| 632 | WD21X20309 | Conduit Mid Blaster Asm |
|
- | |||||
| 633 | WD22X25478 | Bottle Blaster Asm |
|
- | |||||
| 634 | WD12X22618 | Bottle Washer Clip |
|
- | |||||
| 650 | WG04L03829 | Inner Rail Upr Rack Asm (Replaces: WD30X20110) |
|
Immediately | $ 79.34 | ||||
| 680 | WG04A02408 | Bracket Asm Upper Rack (Replaces: WD12X20108) |
|
Immediately | $ 48.68 | ||||
| 681 | WG04A02409 | Bracket Asm Upper Rack (Replaces: WD12X20109) |
|
Immediately | $ 41.45 | ||||
| 682 | WD12X20112 | Bracket Fixed |
|
- | |||||
| 683 | WD12X20113 | Bracket Fixed |
|
- | |||||
| 684 | WD28X20311 | Fdt Clip Flat Rack |
|
- | |||||
| 686 | WD28X20310 | Fdt Clip Flat Rack |
|
- | |||||
| 687 | WD28X25646 | Coated Fold Down Upper Rack Tine |
|
- | |||||
| 688 | WD28X25645 | Coated Fold Down Upper Rack Tine |
|
- | |||||
| 726 | WD09X25644 | Rack Handle |
|
- |
