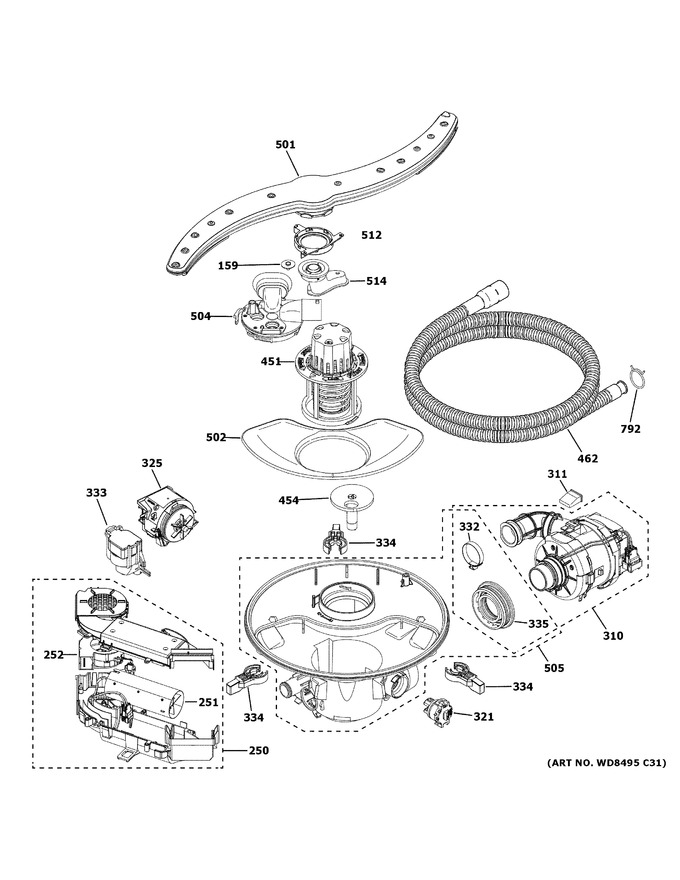

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 159 | WG04A01231 | Scr B-16 Hxw 1/2 Ss (Replaces: WD02X10169) |
|
$ 5.72 | |||||
| 250 | WD05X25648 | Dry Boost Heater And Blower Asm |
|
- | |||||
| 251 | WD05X25647 | Heater Asm |
|
- | |||||
| 252 | WD24X25649 | Blower Asm |
|
- | |||||
| 310 | WD19X25623 | Variable Speed Wash Pump Asm |
|
- | |||||
| 311 | WD01X25638 | Wash Pump Isolator |
|
- | |||||
| 321 | WD21X22830 | Turbidity Sensor Asm |
|
- | |||||
| 325 | WD19X25622 | Variable Speed Drain Pump Asm |
|
- | |||||
| 332 | WD02X25470 | Clamp |
|
- | |||||
| 333 | WD21X25468 | Pressure Sensor Asm |
|
- | |||||
| 334 | WD01X25469 | Sump Latch |
|
- | |||||
| 335 | WD08X25471 | Floating Seal Asm |
|
- | |||||
| 451 | WD12X25995 | User Cleanable Fine Filter And Basket As |
|
- | |||||
| 454 | WD19X25637 | Diverter Disc And Magnet Asm |
|
- | |||||
| 462 | WG04F04609 | Drain Tube Asm (Replaces: WD24X10062) |
|
Immediately | $ 38.64 | ||||
| 501 | WD22X25978 | Lower Spray Arm Asm |
|
- | |||||
| 502 | WD22X25421 | Coarse Filter |
|
- | |||||
| 504 | WD19X26398 | Four Port Diverter And Plug Asm |
|
- | |||||
| 505 | WD19X27779 | Sump Overmold And Gasket |
|
- | |||||
| 512 | WD12X22852 | Hub Spray Arm |
|
- | |||||
| 514 | WD12X25865 | X Arm Adapter |
|
- | |||||
| 792 | WG04A00073 | Clamp (Replaces: WD01X10104) |
|
Immediately | $ 11.44 |
