Body Parts (1)
Body Parts (2)

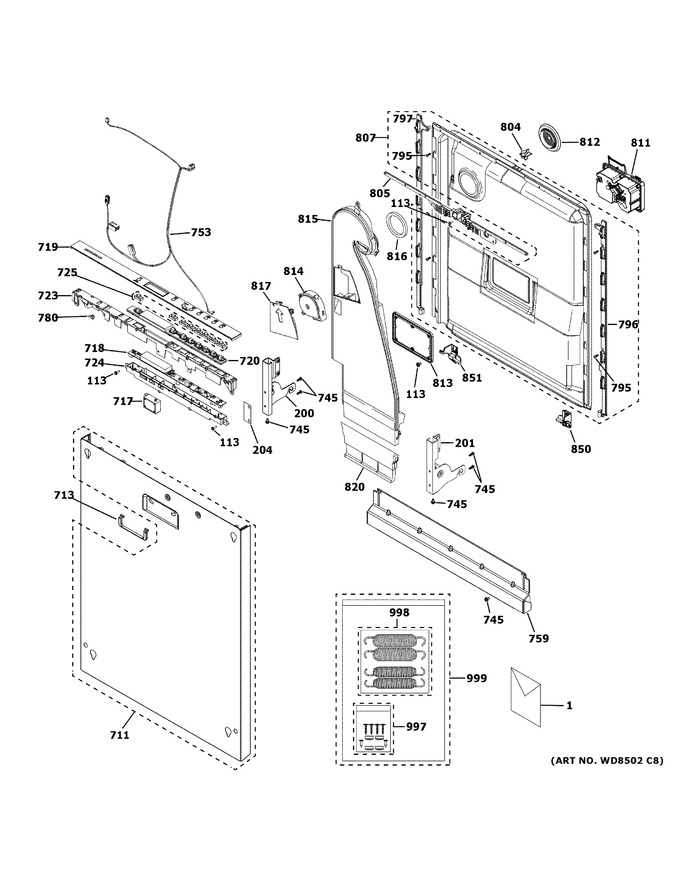

Escutcheon & Door Assembly
Installation Parts
Lower Rack Assembly
Motor, Sump & Filter Assembly
Upper Rack Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-4000212 | Pm Install Instructions |
|
- | |||||
| 1 | 31-4000081 | Pm Attention Installer |
|
- | |||||
| 1 | 31-31536 | Pm Install Instructions |
|
- | |||||
| 1 | 31-4000210 | Pm Mini Manual And Wiring |
|
- | |||||
| 113 | WG04A00176 | Screw 8-16 Hxw 1/2 Ss (Replaces: WD02X10067) |
|
$ 3.57 | |||||
| 200 | WD14X22896 | Arm Hinge Asm Lh |
|
- | |||||
| 201 | WD14X22895 | Arm Hinge Asm Rh |
|
- | |||||
| 204 | WD14X22977 | Ground Piece Hinge |
|
- | |||||
| 711 | WD01X25659 | Door Panel Trim |
|
- | |||||
| 713 | WD13X10027 | Trim Panel Handle |
|
- | |||||
| 717 | WD01X22942 | Speaker |
|
- | |||||
| 718 | WD21X25988 | Configured Ui Control Board |
|
- | |||||
| 719 | WD34X26005 | Monogram Console Cover Asm |
|
- | |||||
| 720 | WD21X20299 | Silicone Light Pipe |
|
- | |||||
| 723 | WD12X22906 | Console Top Control |
|
- | |||||
| 724 | WD12X20225 | Housing Bottom |
|
- | |||||
| 725 | WD09X20394 | Button |
|
- | |||||
| 745 | WD01X22514 | Scr 10-32 Gx Ihxw 9/16 S |
|
- | |||||
| 753 | WD21X25983 | Door Harness Asm |
|
- | |||||
| 759 | WD27X26218 | Toe Kick Painted Asm |
|
- | |||||
| 780 | WD01X22934 | Ground Clip Onsert |
|
- | |||||
| 795 | WD02X22628 | Screw T15 8-16 Plastite 60-1 |
|
- | |||||
| 796 | WD01X22836 | Attach Strip Rh |
|
- | |||||
| 797 | WG04A02187 | Attach Strip (Replaces: WD01X10634) |
|
$ 18.59 | |||||
| 804 | WG04F06693 | Striker Latch (Replaces: WD13X10071) |
|
Immediately | $ 8.58 | ||||
| 805 | WD13X22837 | Attachment Strip Top |
|
- | |||||
| 807 | WD27X25997 | Stainless Inner Door Asm |
|
- | |||||
| 811 | WD12X24060 | Detergent Disp Sensor |
|
$ 44.21 | |||||
| 812 | WD01X25673 | Vent Cover |
|
- | |||||
| 813 | WD12X10462 | Plate Detergent |
|
- | |||||
| 814 | WD08X25635 | Blower Gasket Asm |
|
- | |||||
| 815 | WD12X25634 | Door Conduit Vent Asm |
|
- | |||||
| 816 | WG04L01634 | Door Vent Seal (Replaces: WD08X10092) |
|
Immediately | $ 10.01 | ||||
| 817 | WD01X25633 | Conduit Fan Cover |
|
- | |||||
| 820 | WD24X26142 | Door Vent |
|
- | |||||
| 850 | WD12X22835 | Trim Door Rh |
|
- | |||||
| 851 | WD12X22834 | Trim Door Lh |
|
- | |||||
| 997 | WD35X20333 | Bag Hardware Asm Kit |
|
- | |||||
| 998 | WD35X20335 | Kit Door Balance |
|
- | |||||
| 999 | WD35X25996 | Trim Panel Accessory Kit |
|
- |
