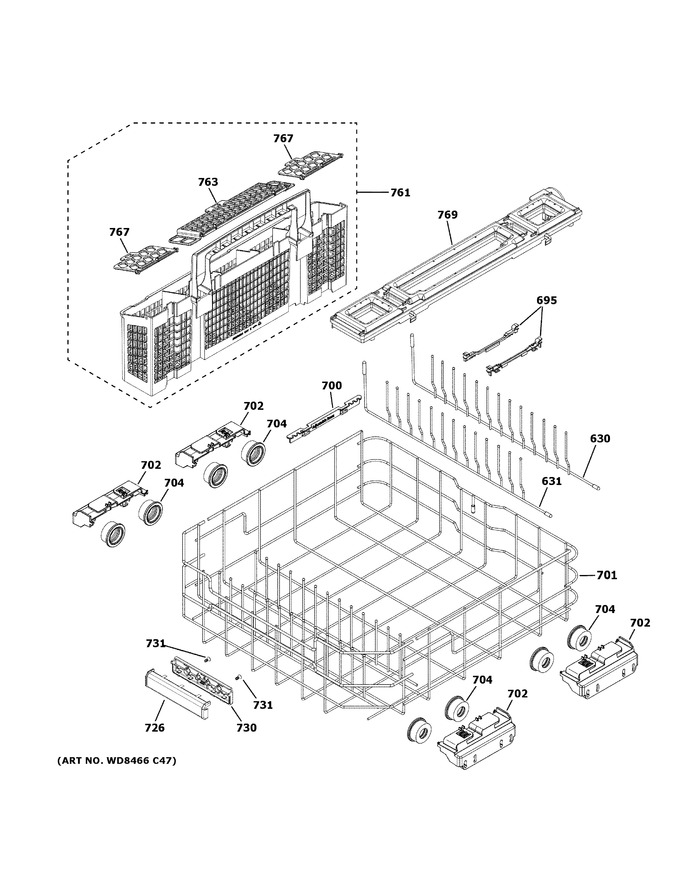

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 630 | WD28X25581 | Coated Fold Down Tine |
|
- | |||||
| 631 | WD28X25582 | Coated Fold Down Tine |
|
- | |||||
| 695 | WD12X20171 | Clip Lower Rack |
|
- | |||||
| 700 | WD28X20166 | Indexer |
|
- | |||||
| 701 | WD28X25580 | Coated Lower Rack Asm |
|
- | |||||
| 702 | WD12X28078 | Roller Carrier |
|
- | |||||
| 704 | WD12X26146 | Lower Rack Roller |
|
- | |||||
| 726 | WD09X25982 | Monogram Rack Handle |
|
- | |||||
| 730 | WD09X25981 | Rear Rack Handle Cover |
|
- | |||||
| 731 | WD02X20176 | Scr 8-16 B Flt .438 Ss |
|
- | |||||
| 761 | WD28X25984 | Basket Silverware Asm |
|
- | |||||
| 763 | WD28X20153 | Lid Basket Middle |
|
- | |||||
| 767 | WD28X20156 | Lid Basket Side |
|
- | |||||
| 769 | WD22X25986 | Silverware Blaster Asm |
|
- |
