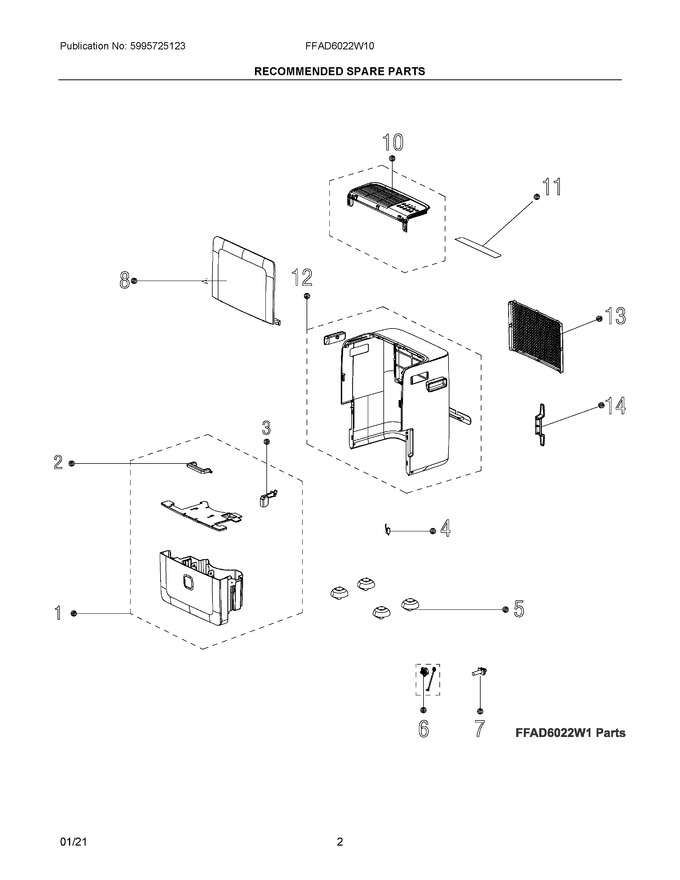

02 - Recommended Spare Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304524323		Bucket Assembly, Complete, W/float-handle		Appelez-nous	-
2	5304523390		Handle, Bucket		Appelez-nous	-
3	5304523391		Float, Bucket				$ 13.01
4	5304523392		Switch, Inching				$ 18.08
5	5304502037		Caster, Roller, (4)				$ 23.39
6	5304516978		Drain Kit				$ 14.46
7	5304523400		Cord, Power		Appelez-nous	-
8	5304524324		Front Panel, Assembly		Appelez-nous	-
10	5304524325		Top Cover, Assembly		Appelez-nous	-
11	5304528032		Overlay, Control		Appelez-nous	-
12	5304524326		Wrapper, Assembly, Rear		Appelez-nous	-
13	5304524327		Air Inlet, Assembly, W/filter		Appelez-nous	-
14	5304528033		Hook, Power Cord		Appelez-nous	-
