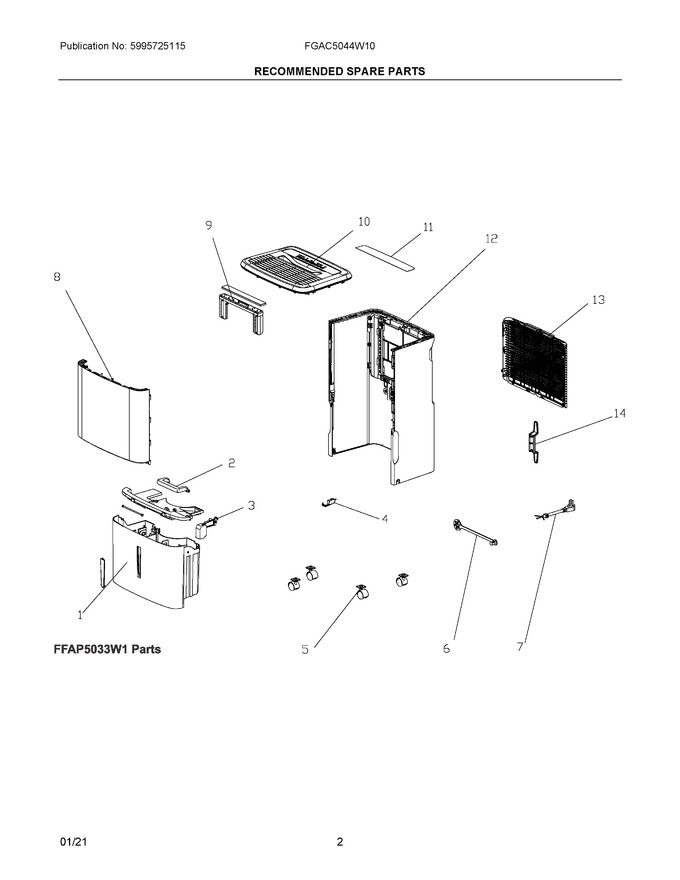

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304523399 | Bucket Assembly, Complete, W/float-handle |
|
$ 215.43 | |||||
| 2 | 5304523390 | Handle, Bucket |
|
- | |||||
| 3 | 5304523391 | Float, Bucket |
|
$ 13.01 | |||||
| 4 | 5304523392 | Switch, Inching |
|
$ 18.08 | |||||
| 5 | 5304512486 | Caster, (4) |
|
$ 20.24 | |||||
| 6 | 5304516978 | Drain Kit |
|
$ 14.46 | |||||
| 7 | 5304523400 | Cord, Power |
|
- | |||||
| 8 | 5304524242 | Front Panel, Assembly |
|
- | |||||
| 9 | 5304524243 | Handle, Assembly |
|
- | |||||
| 10 | 5304524244 | Top Cover, Assembly |
|
- | |||||
| 11 | 5304524245 | Overlay, Control |
|
- | |||||
| 12 | 5304523405 | Wrapper, Assembly |
|
- | |||||
| 13 | 5304524011 | Grill Assembly, Air Inlet, W/filter |
|
- | |||||
| 14 | 5304523397 | Hook, Power Cord |
|
- |
