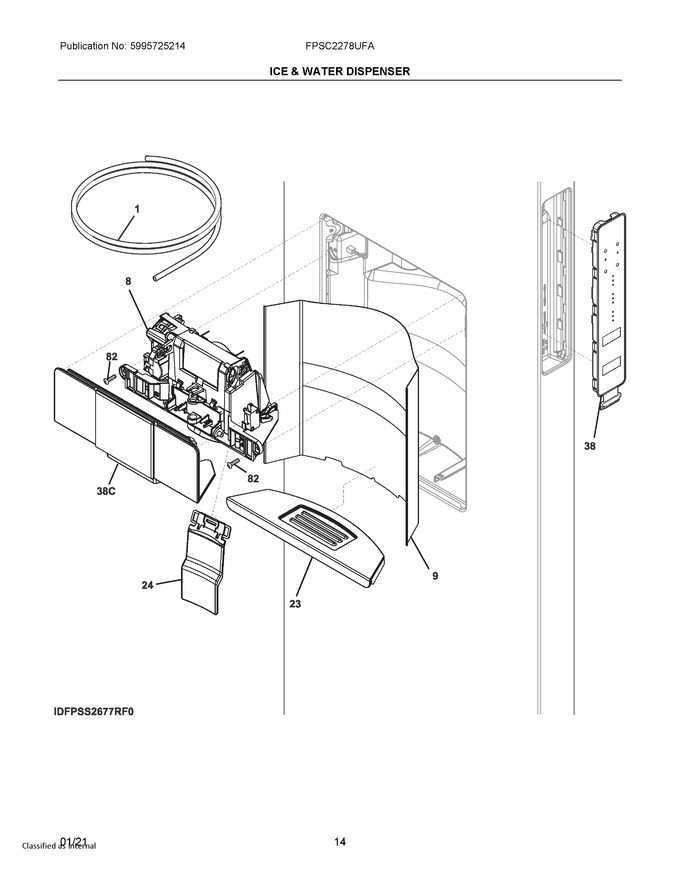

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976438		Tube, Water, 62", Natural, Door, To Dispenser			Immediately	$ 22.84
8	242270214		Module Assembly, Ice & Water, Complete   (Replaces: 242270213)				$ 100.83
9	809089802		Liner, Sump Back, Stainless		Appelez-nous	-
23	5304501179		Sump Assembly, Ice & Water, Stainless   (Replaces: 5304504414)				$ 189.59
24	5304501181		Actuator, Ice Lever, Silver				$ 112.07
38	242048230		User Interface,, Assembly, Black, W/board & Pad				$ 270.39
82	240363403		Screw, 8-18 X 0.500, 2		Appelez-nous	-
38C	809091204		Control Assembly, Dispenser Uib				$ 329.47
NI	5303918744		Kit, Dspnsr Heater, Dc				$ 225.82
NI	5304520997		Cover, Connector, Door Heater, To Door Harness		Appelez-nous	-
NI	5304521767		Harness, Wiring, Door				$ 32.87
NIA	218976421		Tube, Water, 27", Yellow, Valve, To Door				$ 22.84

    View Diagram in Separate Window       Print Part List
