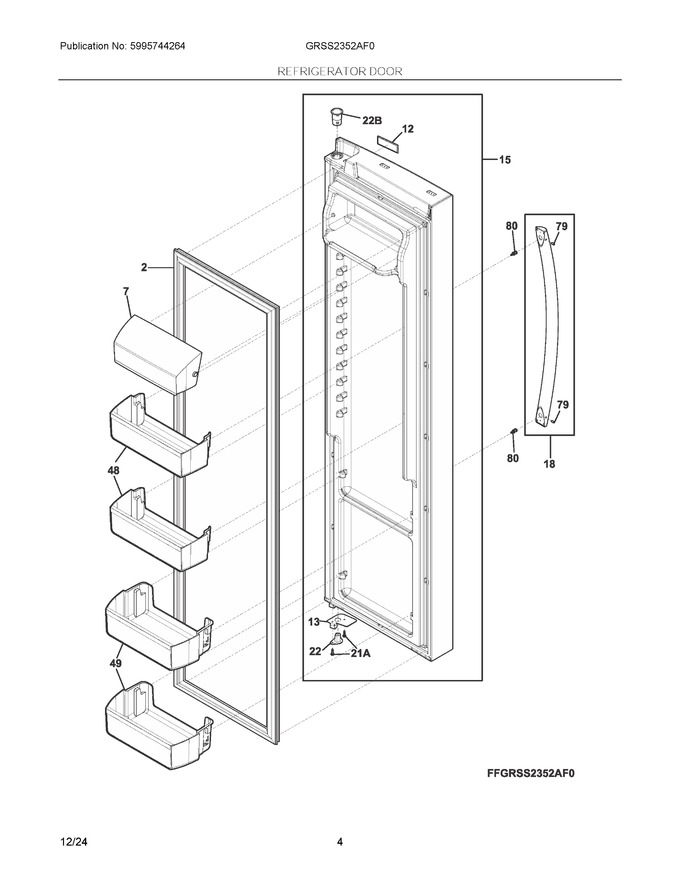

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786015 | Gasket-refr Door, Grey, Magnetic (Replaces: 241786011) |
|
Immediately | $ 105.18 | ||||
| 7 | 5304526901 | Cover, Compartment, Dairy |
|
Immediately | $ 118.70 | ||||
| 12 | 5304512150 | Nameplate, Chrome, Frig Gallery |
|
Immediately | $ 64.61 | ||||
| 13 | 241990201 | Door Stop, Black, Ref |
|
$ 23.63 | |||||
| 15 | 5304526961 | Door Assembly, Fresh Food, Stainless, Complete |
|
Immediately | $ 663.10 | ||||
| 18 | 140186157115 | Handle, Door, Stainless, W/set Screws (Replaces: 5304527111) |
|
Immediately | $ 65.51 | ||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.88 | |||||
| 48 | 5304536369 | Bin Assembly, 2 Liter, Ff Door, W/trim (Replaces: 5304526893) |
|
Immediately | $ 42.95 | ||||
| 49 | 5304536370 | Bin Assembly, Gallon, Ff Door, W/trim (Replaces: 5304526892) |
|
Immediately | $ 50.77 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 14.18 | |||||
| NIA | 241601002 | Wrench, Allen |
|
- |
