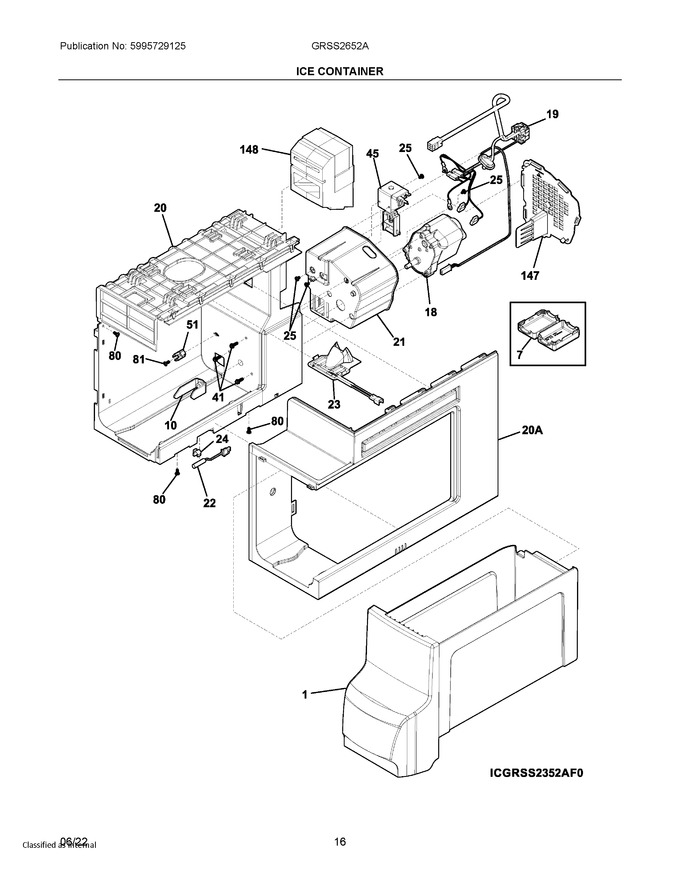

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304526872 | Ice Container Assembly, W/moving Parts |
|
$ 64.88 | |||||
| 10 | 241829002 | Drive Bar' |
|
$ 20.67 | |||||
| 18 | 5304527039 | Motor, Auger |
|
$ 191.21 | |||||
| 19 | 5304521770 | Harness, Slim Twist, Ice Maker |
|
$ 96.34 | |||||
| 20 | 242303501 | Housing, Slim Ice Maker |
|
$ 126.40 | |||||
| 21 | 242305203 | Housing, Cover Motor, Solenoid |
|
$ 28.12 | |||||
| 22 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.73 | ||||
| 23 | 4056053871 | Fill Cup, W/heater (Replaces: 5304504455) |
|
Immediately | $ 79.77 | ||||
| 24 | 241519401 | Clip, Sensor |
|
$ 9.45 | |||||
| 25 | 218359202 | Screw, 8-32 X 1/4 (Replaces: 241842101) |
|
$ 11.81 | |||||
| 41 | 240555005 | Screw, Hex Washer Head, 8-32 X 3/8 |
|
$ 12.64 | |||||
| 45 | 241675705 | Solenoid, Assembly |
|
Immediately | $ 153.58 | ||||
| 51 | 242095501 | Pin-anti Twist Bkt Gen Ii Im |
|
Immediately | $ 22.84 | ||||
| 80 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 81 | 241953908 | Screw, Quad Hilo, #8-18 |
|
$ 4.73 | |||||
| 147 | 140041623020 | Motor, Cover (Replaces: 5304504451) |
|
- | |||||
| 148 | 5304504447 | Duct Air, Slim Icemaker, Assembly |
|
$ 22.75 | |||||
| 20A | 242303601 | Housing, Outer Cover, Slim Icemaker |
|
$ 128.91 | |||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 19.69 |
