SELECT A DIAGRAM

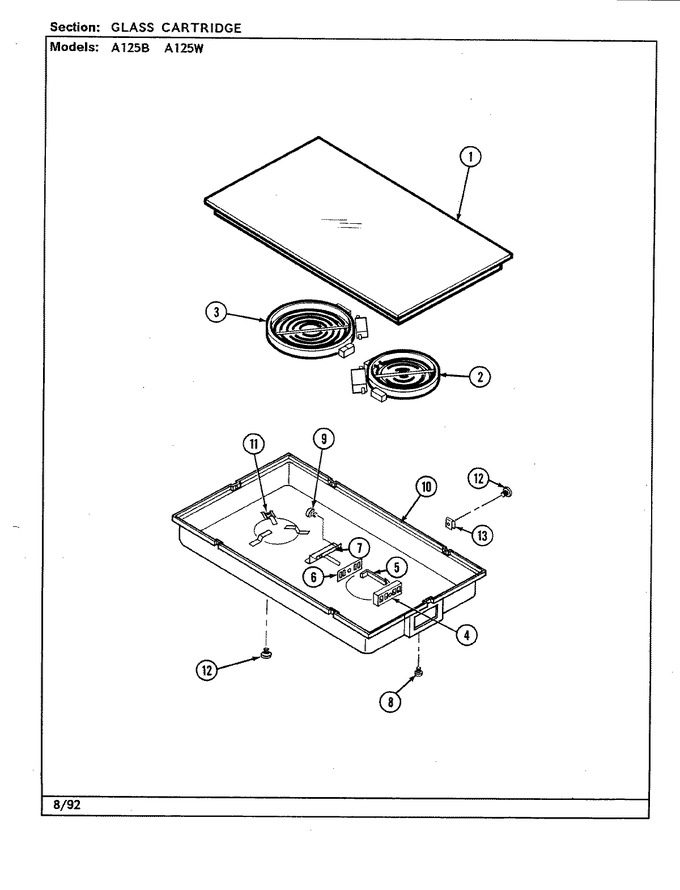

01 - Glass Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y04100331 | Top Frame Assy. (blk) | Series 1 |
|
- | ||||
| 2 | W10823702 | Element, Halogen (160mm) (Replaces: Y04100067) | Series 1 |
|
$ 362.43 | ||||
| 2 | Y700645 | Wire | Series 1 |
|
- | ||||
| 2 | Y04100125 | Wire | Series 1 |
|
- | ||||
| 3 | W10823698 | Element, Halogen (200mm) (Replaces: Y04100066) | Series 1 |
|
Immediately | $ 195.12 | |||
| 4 | WPY708730 | Block, Terminal (Replaces: Y708730) | Series 1 |
|
Immediately | $ 102.01 | |||
| 5 | Y708572 | Spade, Contact | Series 1 |
|
Immediately | $ 13.23 | |||
| 6 | 708834 | Insulator, Contact Spade | Series 1 |
|
$ 15.74 | ||||
| 7 | Y700648 | Bracket, Retaining Assy. | Series 1 |
|
- | ||||
| 8 | WP12990527 | Screw (Replaces: Y708955) | Series 1 |
|
Immediately | $ 8.76 | |||
| 9 | WP488234 | Screw (Replaces: 708861) | Series 1 |
|
$ 7.08 | ||||
| 10 | 04100332 | Pan Assy | Series 1 |
|
- | ||||
| 11 | Y04100171 | Stop, Anti Rotation | Series 1 |
|
- | ||||
| 12 | WPW10253196 | Screw (Replaces: Y707113) | Series 1 |
|
$ 4.62 | ||||
| 13 | Y708910 | Clip | Series 1 |
|
- |
