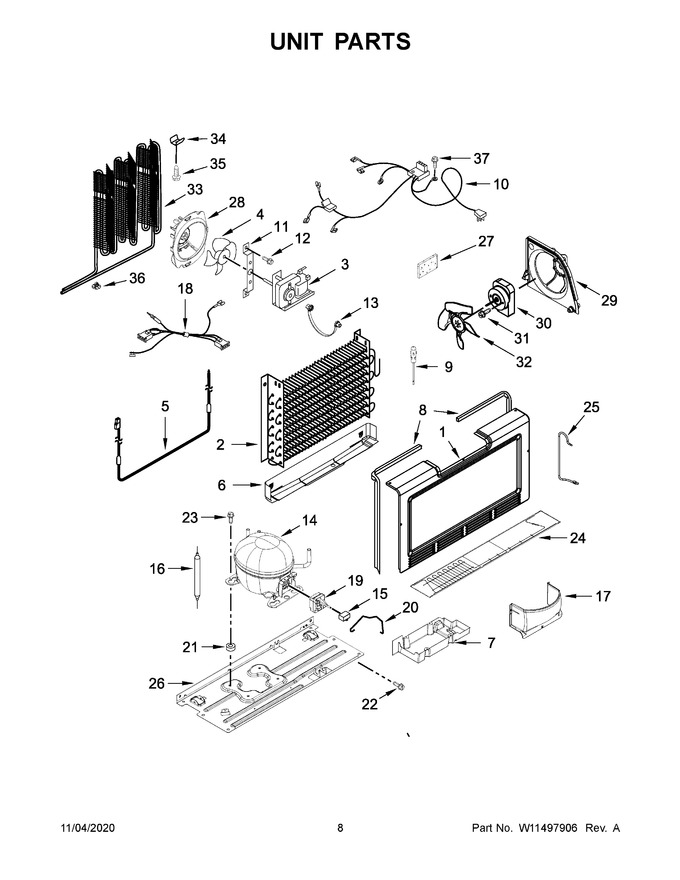

05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11551256 | Cover, Evaporator (Replaces: W10574307) |
|
$ 124.62 | |||||
| 2 | W11507067 | Evaporator (Replaces: W11209261) |
|
Immediately | $ 209.90 | ||||
| 3 | W11499658 | Motor, Fan (Replaces: W11340536) |
|
Immediately | $ 113.86 | ||||
| 4 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 45.57 | ||||
| 5 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 257.91 | ||||
| 6 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| 7 | W10574291 | Pan, Evaporator Drain |
|
$ 119.42 | |||||
| 8 | WPW10574368 | Gasket, Evaporator Cover (Replaces: W10574305) |
|
$ 8.75 | |||||
| 9 | WPW10383615 | Thermistor, Evaporator (Replaces: W10383615) |
|
Immediately | $ 51.24 | ||||
| 10 | W11293553 | Harns-wire |
|
$ 128.23 | |||||
| 11 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 12 | 380732014 | Screw |
|
- | |||||
| 13 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 8.31 | |||||
| 14 | W10233961 | Compressor (Replaces: W11189854) |
|
$ 643.40 | |||||
| 15 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 97.96 | ||||
| 16 | WPW10143759 | Drier (Replaces: W10709968) |
|
Immediately | $ 30.78 | ||||
| 17 | W10574274 | Cover, Evaporator Fan |
|
$ 112.01 | |||||
| 18 | W11670030 | Harness, Evaporator Fan (Replaces: W11324678) |
|
$ 63.63 | |||||
| 19 | W10873801 | Device, Start (Replaces: W10796752) |
|
Immediately | $ 121.28 | ||||
| 20 | W11092534 | Strap, Bale (Replaces: W10216075) |
|
$ 11.89 | |||||
| 21 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 15.21 | |||||
| 22 | 3400524 | Screw (Replaces: W10142287) |
|
$ 13.28 | |||||
| 23 | W11661574 | Screw (Replaces: 489473) |
|
$ 14.29 | |||||
| 24 | W10682882 | Condenser Assembly |
|
- | |||||
| 25 | W10861955 | Tube, Suction |
|
Immediately | $ 80.07 | ||||
| 26 | W10574278 | Pan, Compressor |
|
$ 140.77 | |||||
| 27 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 28 | W10574469 | Shroud, Evaporator Fan |
|
Immediately | $ 37.86 | ||||
| 29 | WP2315541 | Bracket, Condenser Fan (Replaces: 2315541) |
|
Immediately | $ 87.99 | ||||
| 30 | W11578915 | Motor, Condenser (Replaces: 2188875) |
|
Immediately | $ 90.99 | ||||
| 31 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 32 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 99.82 | |||||
| 33 | W11507065 | Condenser (Replaces: W10574289) |
|
Immediately | $ 289.32 | ||||
| 34 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 35 | W11544659 | Screw (Replaces: W10142294) |
|
$ 14.35 | |||||
| 36 | W10815861 | Clip, Bottom Cover |
|
$ 15.80 | |||||
| 37 | 180257102 | Screw |
|
- | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- |
