SELECT A DIAGRAM

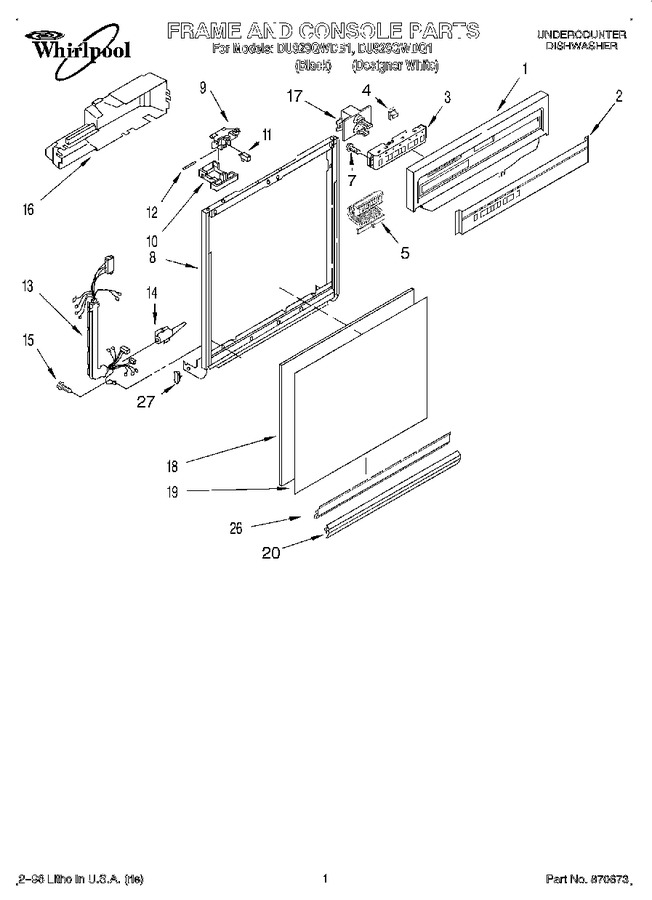

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Motor


05 - Dishrack


06 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3380922		Console (includes Item 2) (white)		Appelez-nous	-
1	3380921		Console (includes Item 2) (black)		Appelez-nous	-
2	3380891		Insert, Console (black)		Appelez-nous	-
2	3380892		Insert, Console (white)		Appelez-nous	-
3	3380945		Control, Electronic		Appelez-nous	-
4	675813		Fuse, Thermal   (Replaces: 3376359)			Immediately	$ 48.05
5	3376474		Switch, Display		Appelez-nous	-
7	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 8.14
8	3374711		Door Frame (includes Item 26) (black)				$ 158.94
8	3374712		Door Frame (includes Item 26) (white)				$ 141.54
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch (black)				$ 5.84
10	3372231		Lever, Latch White		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3381225		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 3400803)				$ 7.08
16	3375473		Cover Timer		Appelez-nous	-
17	3374501		Motor, Dual				$ 45.99
18	3374777		Door, Sound Absorber		Appelez-nous	-
19	WP3369769		Panel, Front (almond/black)   (Replaces: 3369516)				$ 59.42
19	WP3369769		Panel, Front Black/white   (Replaces: 3369769)				$ 59.42
20	3374010		Retainer, Panel (black)				$ 40.68
20	3374011		Retainer, Panel (white)				$ 59.30
26	WP3374716		Channel, Retainer (also Order Item No.20)   (Replaces: 3374716)				$ 100.22
27	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01

    View Diagram in Separate Window       Print Part List
