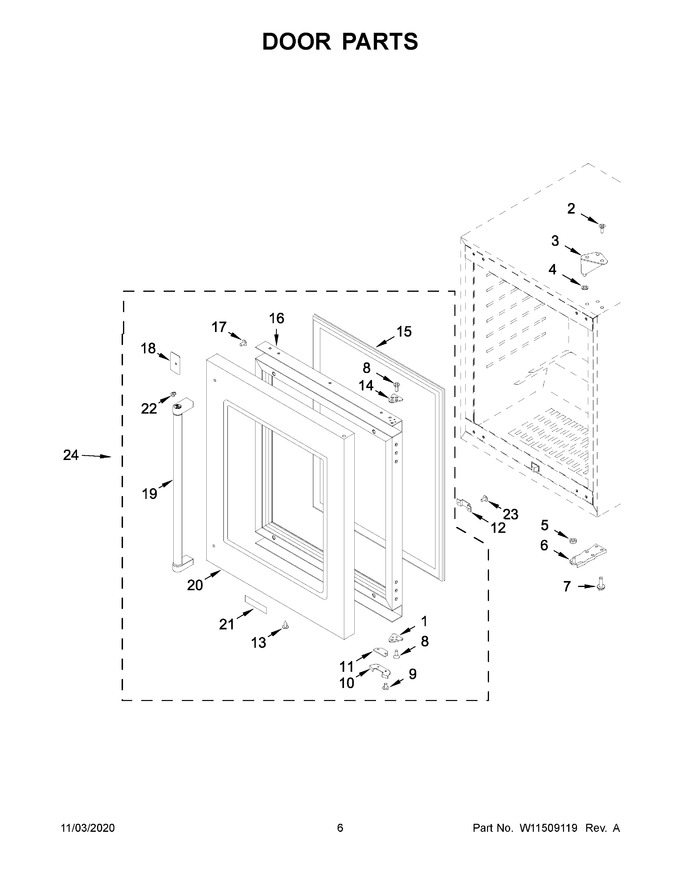

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344756		Spacer, Bottom Hinge				$ 20.70
2	4344796		Screw				$ 16.82
3	4344754		Hinge, Top				$ 89.01
4	4344760		Washer				$ 15.91
5	W11241702		Washer   (Replaces: W10162992)				$ 14.27
6	W10239363		Bottom Hinge (right Hinge)				$ 80.61
7	W10780355		Bolt				$ 50.19
8	W10243123		Screw   (Replaces: W10797377)				$ 16.82
9	4344801		Screw				$ 16.82
10	4344758		Door Stop		Appelez-nous	-
11	4344788		Spacer, Door				$ 171.37
12	W10622808		Switch Plate				$ 27.27
13	W10837731		Screw   (Replaces: W10204865)				$ 8.30
14	W11506494		Spacer, Top Hinge		Appelez-nous	-
15	W11625076		Gasket   (Replaces: W10797384)				$ 109.21
16	W11528675		Door Assembly (right Hand)   (Replaces: W11506867)		Appelez-nous	-
17	W10859467		Screw, Handle   (Replaces: W10204866)				$ 80.23
18	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 17.39
19	W11497229		Handle   (Replaces: W10797382)			Immediately	$ 186.18
20	W11522095		Black Stainless Wrap (right Hand)   (Replaces: W11506495)		Appelez-nous	-
21	W11179312		Nameplate   (Replaces: W10772910)				$ 93.49
22	W11179356		Stud, Mounting   (Replaces: W10772902)				$ 16.62
23	W10319187		Screw   (Replaces: W10780344)				$ 73.51
24	W11632845		Complete Door (black Stainless (right Hinge))   (Replaces: W10913036)				$ 1,231.98
16A	W11528681		Door Assembly (left Hand)   (Replaces: W11506868)		Appelez-nous	-
20A	W11506497		Black Stainless Wrap (left Hand)		Appelez-nous	-
24A	W10913038		Complete Door (black Stainless (left Hinge))				$ 888.30
6A	4344787		Bottom Hinge (left Hinge)				$ 217.36
