SELECT A DIAGRAM
New Model Search:

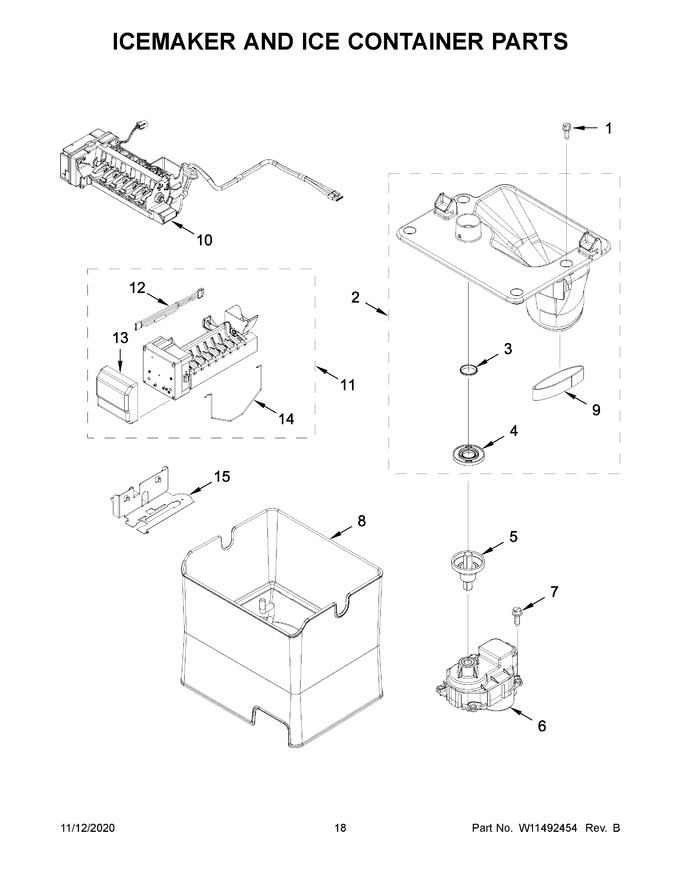

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 11.36 | ||||
| 2 | W10837274 | Plate, Ice Chute (Replaces: W10347051) |
|
$ 82.56 | |||||
| 3 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 12.57 | ||||
| 4 | W10847834 | Clip, Retainer (Replaces: W10347120) |
|
$ 13.53 | |||||
| 5 | W11509548 | Shaft, Motor (Replaces: W10347114) |
|
Immediately | $ 32.32 | ||||
| 6 | W10822606 | Motor, Dispenser (Replaces: W11185741) |
|
Immediately | $ 156.54 | ||||
| 7 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 8 | WPW10347093 | Assembly, Ice Container (Replaces: W10347093) |
|
$ 305.82 | |||||
| 9 | WPW10291905 | Gasket (Replaces: W10291905) |
|
$ 27.68 | |||||
| 10 | W11658802 | Assembly, Icemaker (refrigerator) (Replaces: W11457039) |
|
Immediately | $ 193.05 | ||||
| 11 | W10886939 | Assembly, Icemaker (freezer) (Replaces: W10825619) |
|
Immediately | $ 280.82 | ||||
| 12 | W10886933 | Harness, Ice Maker (Replaces: W10819616) |
|
$ 140.19 | |||||
| 13 | W10153710 | Cover, Front |
|
$ 17.51 | |||||
| 14 | W11559683 | Arm, Shut Off (Replaces: W10512602) |
|
$ 71.20 | |||||
| 15 | W10420084 | Bracket, Icemaker Mounting |
|
$ 77.85 |
