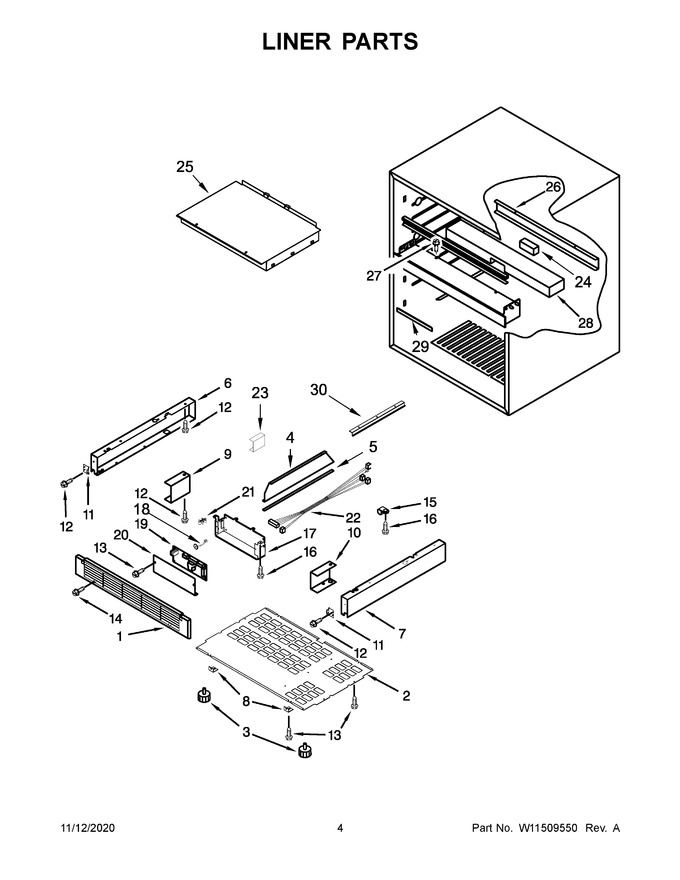

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Upper Drawer Parts


05 - Lower Drawer Parts


06 - Unit Parts


07 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10281494		Kick Plate				$ 108.08
2	W10788692		Cover, Bottom		Appelez-nous	-
3	W11106296		Leg, Leveling   (Replaces: 4344763)				$ 19.03
4	W10778959		Auxiliary Plate		Appelez-nous	-
5	4344823		Seal, Brace				$ 101.83
6	W10621525		Side Frame, Left Hand				$ 105.89
7	W10621526		Side Frame, Right Hand				$ 103.92
8	W10239388		Bracket, Grille		Appelez-nous	-
9	4344820		Support (left Hand)		Appelez-nous	-
10	4344821		Support (right Hand)		Appelez-nous	-
11	W10204640		Kick Plate Mount				$ 79.73
12	4344797		Screw		Appelez-nous	-
13	W10837731		Screw   (Replaces: W10204865)				$ 8.30
14	W10319184		Screw		Appelez-nous	-
15	7111P002-60		Cable Clamp   (Replaces: W10281496)		Appelez-nous	-
16	4344825		Screw		Appelez-nous	-
17	W10772866		Main Pcb Box				$ 95.98
18	W10788693		Speaker				$ 101.30
19	WPW10788697		Main Pcb   (Replaces: W10788697)			Immediately	$ 450.88
20	W10788698		Cover, Speaker Sensor		Appelez-nous	-
21	W10204659		Pcb Standoff				$ 59.39
22	W10772870		Harness Extension			Immediately	$ 134.18
23	W10788699		Bracket, Pcb		Appelez-nous	-
24	W10205072		Mullion Insulation		Appelez-nous	-
25	W10622002		Mullion Body Assembly		Appelez-nous	-
26	W10621527		Mullion Case Cover		Appelez-nous	-
27	W10319183		Screw		Appelez-nous	-
28	W10621528		Mullion Insulation		Appelez-nous	-
29	W11422742		Mullion Case Insulation Front		Appelez-nous	-
30	W11493080		Block Air Circulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
