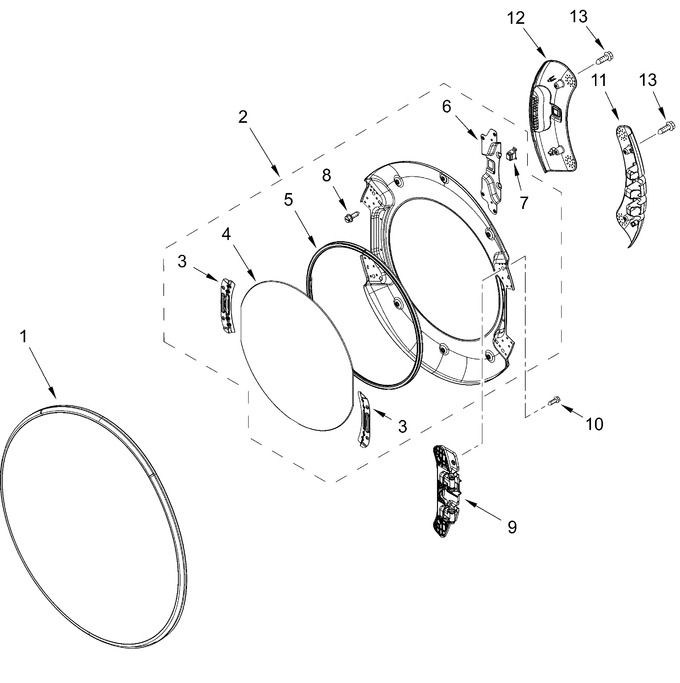

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11449081 | Assembly, Outer Door (white) (Replaces: W11114013) |
|
$ 127.87 | |||||
| 2 | W11321075 | Assembly, Inner Door (Replaces: W11122999) |
|
$ 331.66 | |||||
| 3 | W11310037 | Bracket, Glass (Replaces: W11100789) |
|
$ 21.50 | |||||
| 4 | W11310036 | Glass, Door (Replaces: W10891207) |
|
$ 181.59 | |||||
| 5 | W11310035 | Seal, Glass (Replaces: W11183899) |
|
Immediately | $ 86.79 | ||||
| 6 | W11310039 | Bracket, Door Catch (Replaces: W11050690) |
|
$ 24.43 | |||||
| 7 | W11240283 | Assembly, Spring Catch (Replaces: W10208401) |
|
Immediately | $ 28.04 | ||||
| 8 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 9 | W11742046 | Hinge Assembly (Replaces: W11114011) |
|
Immediately | $ 162.31 | ||||
| 10 | 8540479 | Screw, Grounding |
|
$ 9.22 | |||||
| 11 | W11120174 | Cover, Hinge |
|
Immediately | $ 25.61 | ||||
| 12 | W11690848 | Cover, Handle (Replaces: W11120683) |
|
Immediately | $ 72.19 | ||||
| 13 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.55 |
