SELECT A DIAGRAM

01 - Cover Sheet

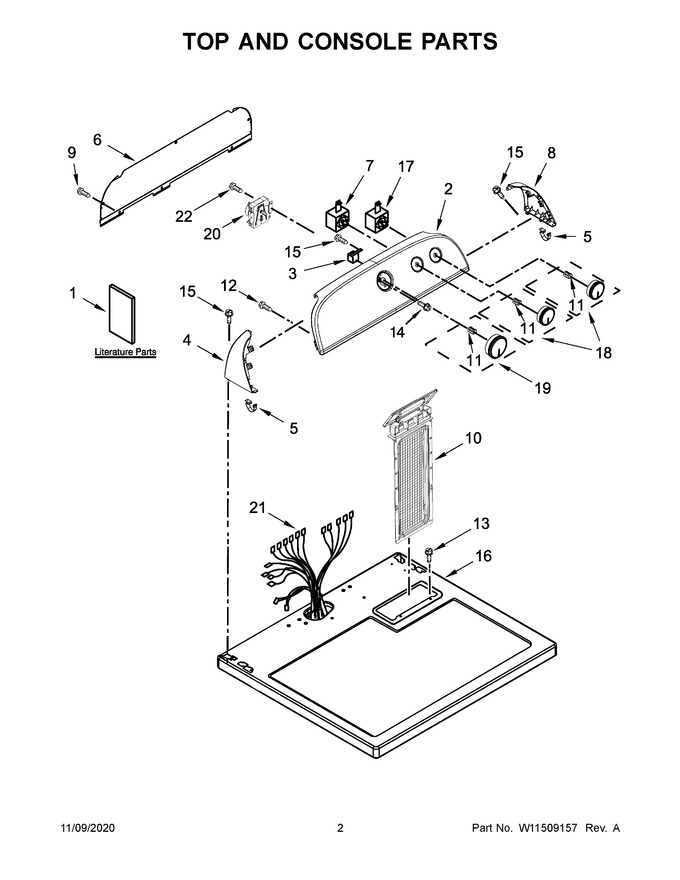

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11361424		Owners Manual		Appelez-nous	-
2	W10860906		Assembly, Panel & Bracket (white)   (Replaces: W10692607)				$ 277.96
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WPW10520782		End Cap (left) (white)   (Replaces: W10520782)				$ 64.69
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10556829		Panel, Rear (console)				$ 285.82
7	W11050715		Switch, Temperature   (Replaces: W10661453)			Immediately	$ 11.59
8	WPW10520780		End Cap (right) (white)   (Replaces: W10520780)				$ 64.34
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 54.63
11	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
12	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	W10850756		Screw   (Replaces: W10773242)				$ 8.20
15	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
18	W11176265		Assembly, Control Knob (white/metallic)   (Replaces: W10770858)				$ 52.40
19	W11501455		Assembly, Timer Knob (white/metallic)   (Replaces: W10576634)				$ 45.78
20	WPW10185981		Assembly, Timer (60 Hz.)   (Replaces: W10185981)				$ 346.09
21	W10865750		Harness, Wiring		Appelez-nous	-
22	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
1A	W11355746		Quick Start Guide		Appelez-nous	-
1B	W10876312		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
