SELECT A DIAGRAM

01 - Cover Sheet


02 - Jar Assembly Parts

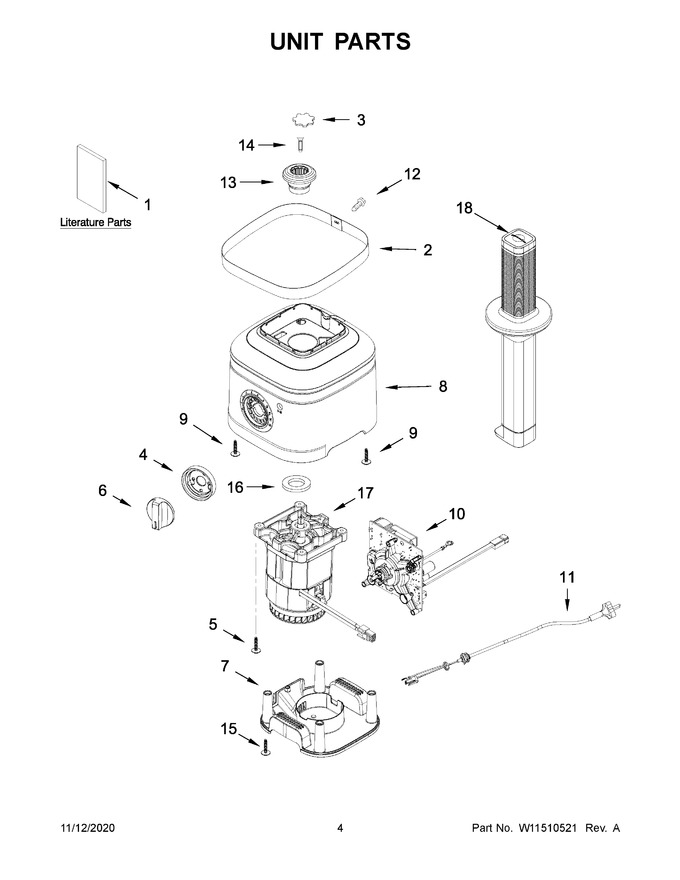

03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11435383		Use & Care Guide		Appelez-nous	-
2	W11731849		Trimband   (Replaces: W11179370)		Appelez-nous	-
3	W11486757		Plug, Coupler   (Replaces: W11219397)				$ 8.14
4	W11627537		Bezel, Rotary Switch   (Replaces: W11214276)		Appelez-nous	-
5	WP3395530		Screw   (Replaces: 697773)				$ 8.57
6	W11611304		Knob, Rotary Switch   (Replaces: W11357978)				$ 67.28
7	W11684609		Base   (Replaces: W11183716)		Appelez-nous	-
8	W11245946		Upper Base (black Matte)		Appelez-nous	-
9	W10276642		Screw				$ 6.41
10	W11580224		Electronic Control   (Replaces: W11405622)				$ 87.65
11	W11392823		Power Cord   (Replaces: W11226930)		Appelez-nous	-
12	WP3196170		Screw   (Replaces: 3400617)				$ 7.55
13	W11627528		Coupler   (Replaces: W11294881)				$ 12.57
14	W11486756		Screw, Coupler   (Replaces: W11174445)		Appelez-nous	-
15	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
16	W11643384		Seal, Motor   (Replaces: W11211960)			Immediately	$ 23.63
17	W11433014		Motor   (Replaces: W11204699)				$ 129.41
18	W11503272		Tamper   (Replaces: W11392881)		Appelez-nous	-
8A	W11279715		Upper Base (contour Silver)		Appelez-nous	-
8B	W11245947		Upper Base (passion Red)		Appelez-nous	-
8C	W11245949		Upper Base (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
