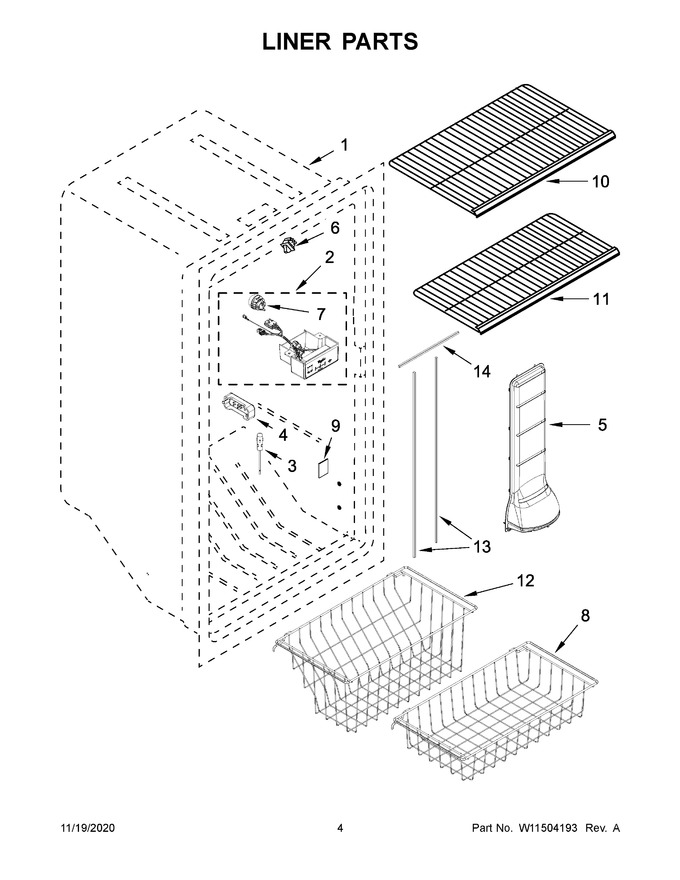

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | W11496884 | Control Assembly (Replaces: W11396167) |
|
$ 241.31 | |||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 31.23 | |||||
| 5 | W10574272 | Air Tower |
|
Immediately | $ 134.24 | ||||
| 6 | W10755325 | Switch, Light |
|
Immediately | $ 41.17 | ||||
| 7 | W11502762 | Module, Led (Replaces: W11254095) |
|
$ 35.70 | |||||
| 8 | W10713813 | Basket, Shallow |
|
$ 306.54 | |||||
| 9 | 160123001 | Cover, Icemaker Hole |
|
- | |||||
| 10 | W10860909 | Shelf, Deep Wire (Replaces: W10569282) |
|
Immediately | $ 257.02 | ||||
| 11 | W11679651 | Shelf, Shallow Wire (Replaces: W10569283) |
|
$ 134.34 | |||||
| 12 | W10713812 | Basket, Deep |
|
$ 322.60 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 8.75 | |||||
| 14 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 8.75 |
