01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Top Venting Parts


05 - Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)

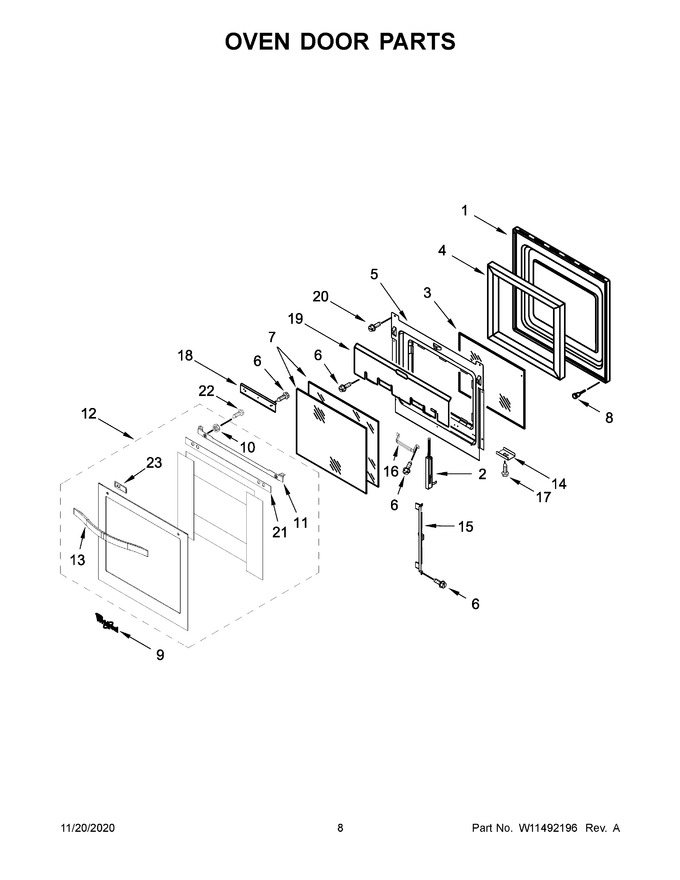

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Liner, Door   (Replaces: 8303698)				$ 351.88
2	WP9760572		Hinge, Door (left)   (Replaces: 9760572)				$ 111.96
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 184.30
4	W11688413		Insulation, Door   (Replaces: 4451720)				$ 26.92
5	4457130		Retainer, Glass		Appelez-nous	-
6	7101P42660		Screw		Appelez-nous	-
7	WP9759223		Glass, Inner   (Replaces: 9759223)				$ 198.29
8	4448520		Bumper, Door				$ 22.25
9	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
10	WP488130		Nut   (Replaces: 488130)				$ 7.32
11	W10708952		Bracket, Handle		Appelez-nous	-
12	W10804164		Assembly, Door (stainless)   (Replaces: W10692584)				$ 783.25
13	W10684318		Assembly, Door Handle (stainless)		Appelez-nous	-
14	W10789032		Clip, Retainer (stainless)		Appelez-nous	-
15	WP9759229		Bracket, Side   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket, Central				$ 36.30
17	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
18	4457112		Shield, Heat Bottom		Appelez-nous	-
19	4457101		Shield, Heat		Appelez-nous	-
20	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
21	8300853		Seal, Door Top		Appelez-nous	-
22	W11690596		Screw With Washer   (Replaces: W10284411)				$ 23.31
23	W10650497		Spacer, Handle		Appelez-nous	-
2A	WP9760571		Hinge, Door (right)   (Replaces: 9760571)			Immediately	$ 114.51
