SELECT A DIAGRAM
01 - Cover Sheet

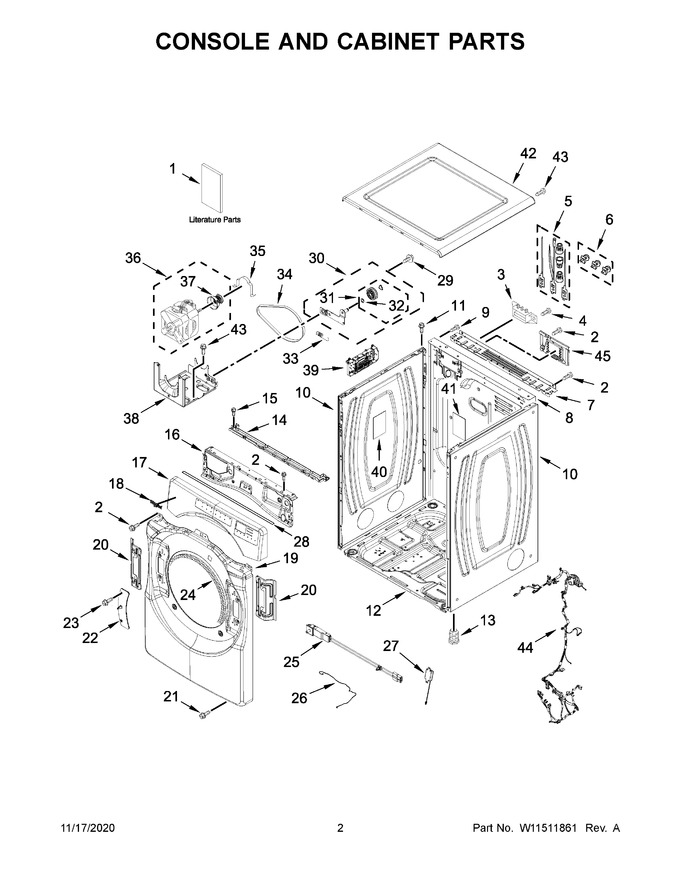

02 - Console And Cabinet Parts
03 - Door Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11364660 | Owners Manual |
|
- | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 4 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 5 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 6 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 7 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 46.18 | |||||
| 8 | W10487430 | Panel, Rear |
|
Immediately | $ 357.12 | ||||
| 9 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 10 | W11233548 | Panel, Side (white) (Replaces: W11177568) |
|
$ 261.33 | |||||
| 11 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 12 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 13 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 14 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 23.74 | |||||
| 15 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 16 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 17 | W11367339 | Panel, Console (white) (Replaces: W11314497) |
|
$ 693.63 | |||||
| 18 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 19 | W11752163 | Panel, Front (white) (Replaces: W11413344) |
|
Immediately | $ 337.96 | ||||
| 20 | W11310030 | Bracket, Hinge (Replaces: W11084215) |
|
$ 24.71 | |||||
| 21 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 22 | W11310031 | Strike, Door (Replaces: W11126752) |
|
$ 29.06 | |||||
| 23 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 24 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 25 | W11551763 | Assembly, Door Switch (Replaces: W11307535) |
|
Immediately | $ 33.27 | ||||
| 26 | W11459337 | Harness, User Interface (Replaces: W11160620) |
|
$ 33.89 | |||||
| 27 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 28 | W11231800 | Seal |
|
- | |||||
| 29 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 30 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 31 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 32 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 33 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 34 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 35 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 36 | W11511154 | Assembly, Motor (Replaces: W11322192) |
|
Immediately | $ 282.52 | ||||
| 37 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 38 | W11481730 | Bracket, Motor Mounting (Replaces: W11404905) |
|
Immediately | $ 94.84 | ||||
| 39 | W11780094 | Appliance Control Unit (acu) (Replaces: W11461190) |
|
Immediately | $ 295.70 | ||||
| 40 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| 41 | W11409002 | Pad, Foam (Replaces: W10653662) |
|
$ 23.76 | |||||
| 42 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 43 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 44 | W11690849 | Harness, Wiring (main) (Replaces: W11157860) |
|
- | |||||
| 45 | W11662367 | Cover, Terminal Block (Replaces: W11394868) |
|
$ 73.16 | |||||
| 10A | W11315726 | Panel, Side (chrome Shadow) (Replaces: W11177570) |
|
Immediately | $ 321.64 | ||||
| 17A | W11367342 | Panel, Console (chrome Shadow) (Replaces: W11314469) |
|
Immediately | $ 599.37 | ||||
| 19A | W11512556 | Front Panel (includes Door Hinge Bracket) (chrome Shadow) (Replaces: W11413335) |
|
Immediately | $ 303.03 | ||||
| 1A | W11459719 | Tech Sheet |
|
- | |||||
| 1B | W11457204 | Wiring Diagram |
|
- | |||||
| 1C | W11355749 | Quick Start Guide |
|
- | |||||
| 1D | W11184895 | Quick Start Guide |
|
- | |||||
| 42A | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 303.65 | |||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
