Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11296635 Use And Care Guide Appelez-nous -
2 NP Cabinet (not A Serviceable Part) Appelez-nous -
3 W11281081 Cover, Fill Tube   (Replaces: W11182229) Appelez-nous -
4 W11684617 Cover, Water Valve   (Replaces: W10217701) Special Order $ 21.36

5 WP67006642 Pin, Center Hinge   (Replaces: 10351006) Special Order $ 8.78

6 WP8281196 Screw   (Replaces: 12992602) In-Stock Immediately $ 7.55

7 W11573362 Screw (stainless)   (Replaces: W10673840) Special Order $ 14.72

8 B5759655 Gasket Special Order $ 13.03

9 A3076901 Plug, Button Special Order $ 5.70

10 WP489349 Screw   (Replaces: 12992403) In-Stock Immediately $ 8.43

11 W11689473 Hinge, Center (white)   (Replaces: 12607103WD) Special Order $ 69.79

12 WPW10141622 Brake, Roller   (Replaces: W10141622) In-Stock Immediately $ 8.24

13 12587703W Filler, Wrapper (white) Special Order $ 22.90

14 WP12566606ED Hinge, Top   (Replaces: 12566606ED) In-Stock Immediately $ 47.13

15 67006564 Screw   (Replaces: W10709365) In-Stock Immediately $ 8.15

16 67001014 Cover, Hinge (white)   (Replaces: 12477601W) Special Order $ 22.34

17 WPW10534166 Assembly, Grille (includes Clips) (white)   (Replaces: W10534166) In-Stock Immediately $ 76.61

18 W11685757 Label, Fill Tube   (Replaces: 12249902) Special Order $ 7.41

19 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 8.05

20 W11820444 Assembly, Roller (left Hand)   (Replaces: W10515763) In-Stock Immediately $ 37.35

21 W10210978 Cover, Unit Special Order $ 201.78

11A WP12607104ED Hinge, Center (black)   (Replaces: 12607104ED) Special Order $ 167.35

13A 67003485 Filler, Wrapper (black)   (Replaces: 12587703B) In-Stock Immediately $ 22.14

16A 67001012 Cover, Hinge (black)   (Replaces: 12477601B) Special Order $ 49.71

17A WPW10534167 Assembly, Grille (includes Clips) (black)   (Replaces: W10534167) Special Order $ 91.42

1A W11306939 Energy Guide Appelez-nous -
1B W11297588 Tech Sheet Appelez-nous -
20A W11820445 Assembly, Roller (right Hand)   (Replaces: W10515762) In-Stock Immediately $ 37.35

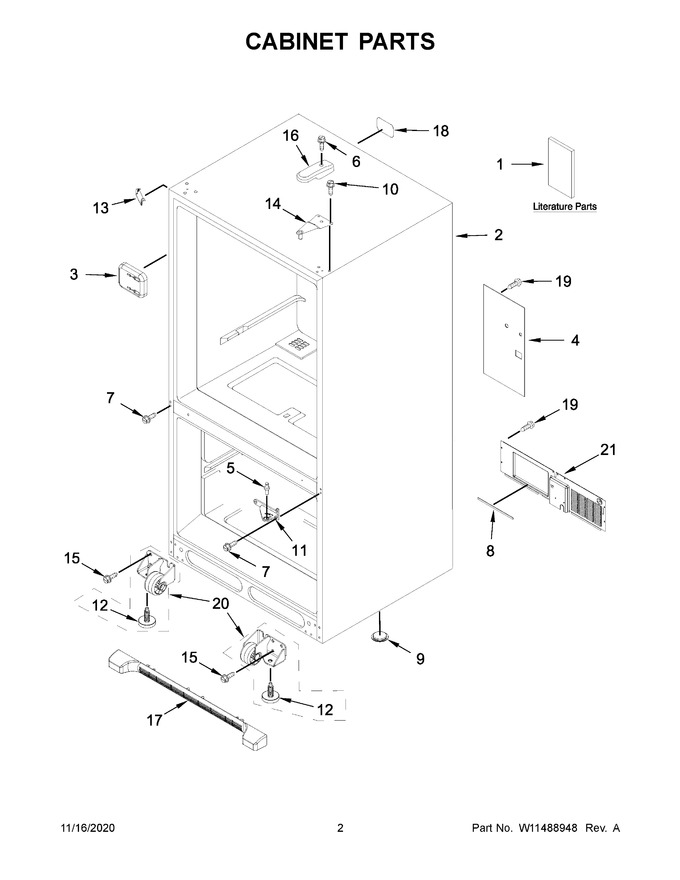

    View Diagram in Separate Window     Print Icon   Print Part List
