SELECT A DIAGRAM

01 - Cover Sheet

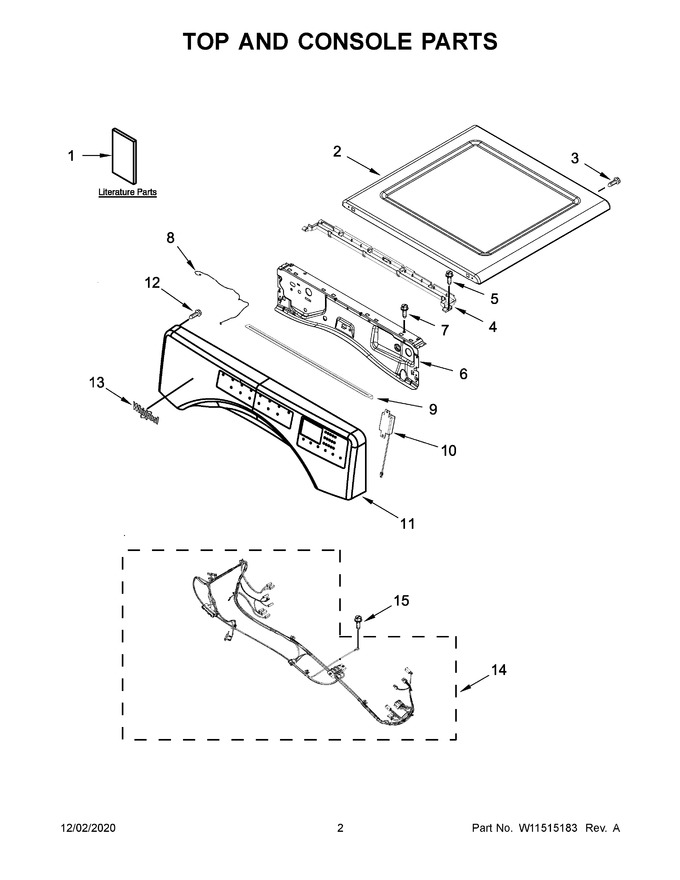

02 - Top And Console Parts


03 - Cabinet Parts


04 - Base Parts


05 - Bulkhead Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11184587		Use And Care Guide		Appelez-nous	-
2	WPW10460919		Top (chrome Shadow)   (Replaces: W10460919)				$ 303.65
3	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
4	W11310027		Channel, Water   (Replaces: W11255768)				$ 23.74
5	W11686675		Screw   (Replaces: 12990702)				$ 14.27
6	W11480682		Bracket, Console   (Replaces: W10208198)				$ 81.21
7	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
8	W11459337		Harness, User Interface   (Replaces: W11160620)				$ 33.89
9	W11231800		Seal		Appelez-nous	-
10	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
11	W11347420		Panel, Console (chrome Shadow)   (Replaces: W11296386)		Appelez-nous	-
12	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
13	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 87.26
14	W11157870		Wiring Harness (upper)		Appelez-nous	-
15	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
1A	W11184511		Installation Instructions		Appelez-nous	-
1B	W11459721		Tech Sheet		Appelez-nous	-
1C	W11184896		Quick Start Guide		Appelez-nous	-
1D	W11457205		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
