01 - Cover Sheet

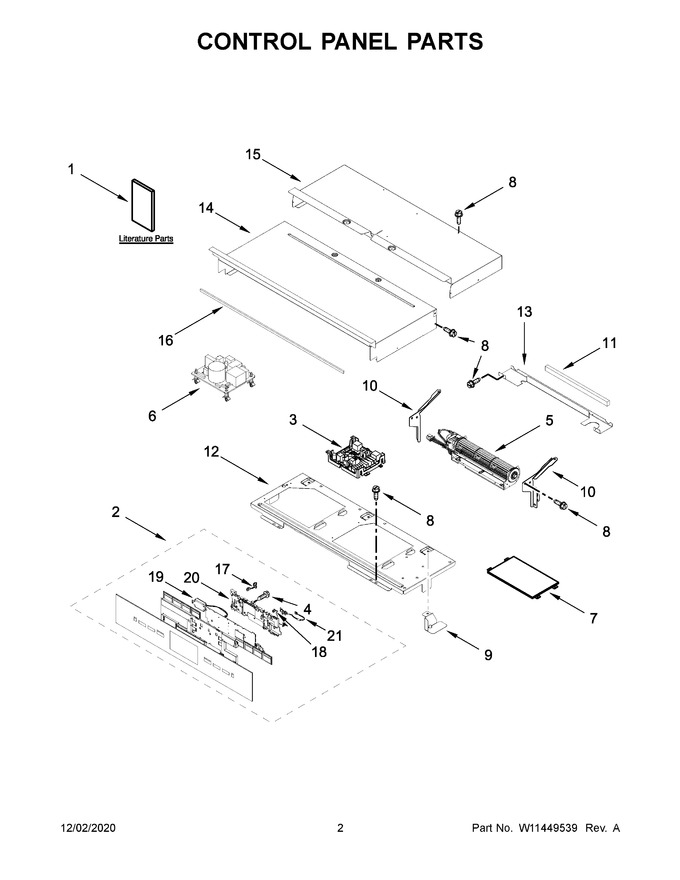

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11235342 | Guide, Use & Care (oven) |
|
- | |||||
| 2 | W11451453 | Assembly, Control Panel (black) (Replaces: W11428993) |
|
$ 1,484.46 | |||||
| 3 | W11448962 | Appliance Manager, Copernicus (Replaces: W11249218) |
|
Immediately | $ 325.47 | ||||
| 4 | W10489172 | Screw |
|
$ 11.98 | |||||
| 5 | W11248652 | Blower (Replaces: W11200129) |
|
Immediately | $ 241.54 | ||||
| 6 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 317.35 | ||||
| 7 | W11333473 | Shield, Chassis Top Cover |
|
- | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W11236427 | Support, Electronic Tray |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W11362006 | Tray, Electronic |
|
- | |||||
| 13 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 14 | W11333985 | Chassis, Cover Top Front 27 |
|
- | |||||
| 15 | W10694466 | Chassis, Cover Top Back 27 |
|
- | |||||
| 16 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 17 | W10566973 | Harness, Keypad (left To Center) |
|
$ 82.19 | |||||
| 18 | W10524350 | Harness, Keypad (right To Center) |
|
$ 78.21 | |||||
| 19 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 20 | W10668510 | Housing |
|
$ 105.17 | |||||
| 21 | W10575307 | Jumper Harness, Power Supply |
|
Immediately | $ 173.84 | ||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11235621 | Instructions, Installation |
|
- | |||||
| 1B | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1C | W11235299 | Diagram, Wiring |
|
- | |||||
| 1D | W11284424 | Sheet, Tech |
|
- | |||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | W11219538 | Harness, Door Latch |
|
$ 90.67 | |||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 32.95 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 | |||||
| NI | W11216670 | Harness, Main |
|
$ 233.47 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 21.12 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | W11216641 | Harness, Signal |
|
$ 116.73 |
