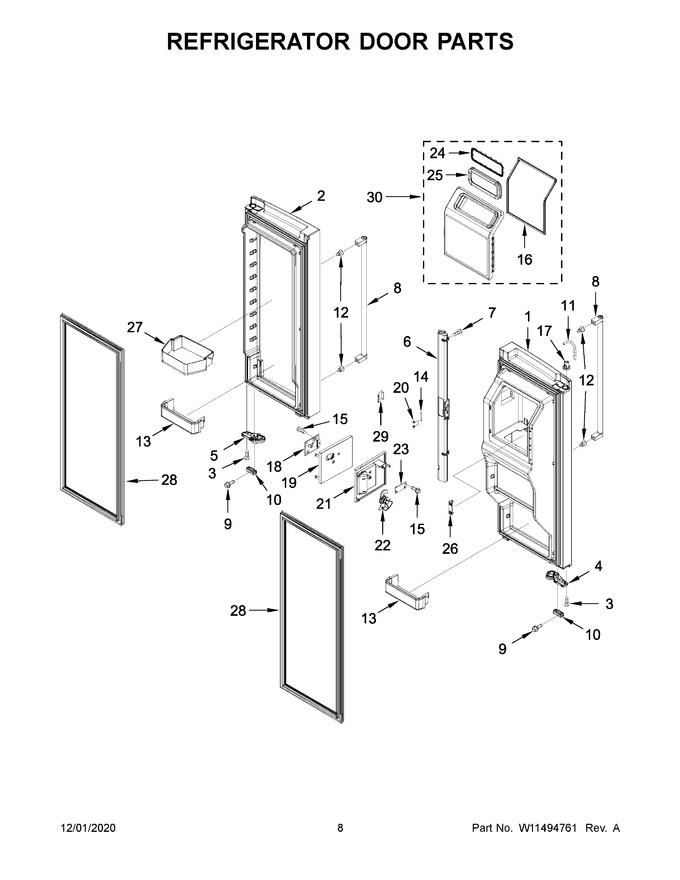

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11518742 | Door, Refrigerator (includes Door Gasket) Left Hand (white) (Replaces: W11405211) |
|
- | |||||
| 2 | LW10624492 | Door, Refrigerator (includes Door Gasket) Right Hand (white) (Replaces: W10624492) |
|
$ 1,264.46 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 | |||||
| 4 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 18.04 | |||||
| 5 | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 17.59 | |||||
| 6 | W10846151 | Mullion, Door (white) (Replaces: W10698195) |
|
$ 140.65 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W11483532 | Handle, Door (stainless) (Replaces: W11339138) |
|
Immediately | $ 178.01 | ||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 14.93 | |||||
| 11 | W10394073 | Tube, Water |
|
$ 126.25 | |||||
| 12 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 17.06 | ||||
| 13 | W11106750 | Trivet, 2 Liter (Replaces: W10791182) |
|
$ 109.08 | |||||
| 14 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 18.65 | |||||
| 15 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 16 | W11624997 | Gasket, Ice Compartment Door (Replaces: W10347085) |
|
$ 69.41 | |||||
| 17 | W11315302 | Clip, Tube |
|
- | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 328.97 | ||||
| 19 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 44.50 | |||||
| 20 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 21 | W10258502 | Cover, Emitter |
|
$ 89.74 | |||||
| 22 | W10258540 | Slide, Icemaker Shut Off |
|
$ 11.15 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10832970) |
|
Immediately | $ 228.05 | ||||
| 24 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 32.32 | |||||
| 25 | WPW10347087 | Gasket, Ice Chute (Replaces: W10347087) |
|
$ 48.97 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646855) |
|
Immediately | $ 23.16 | ||||
| 27 | W11098862 | Bucket, Gallon (Replaces: W10791180) |
|
$ 120.35 | |||||
| 28 | W11678967 | Gasket, Door (white) (Replaces: W10873940) |
|
$ 284.04 | |||||
| 29 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 79.65 | |||||
| 30 | W11268536 | Door, Ice (Replaces: W11249249) |
|
$ 194.06 |
