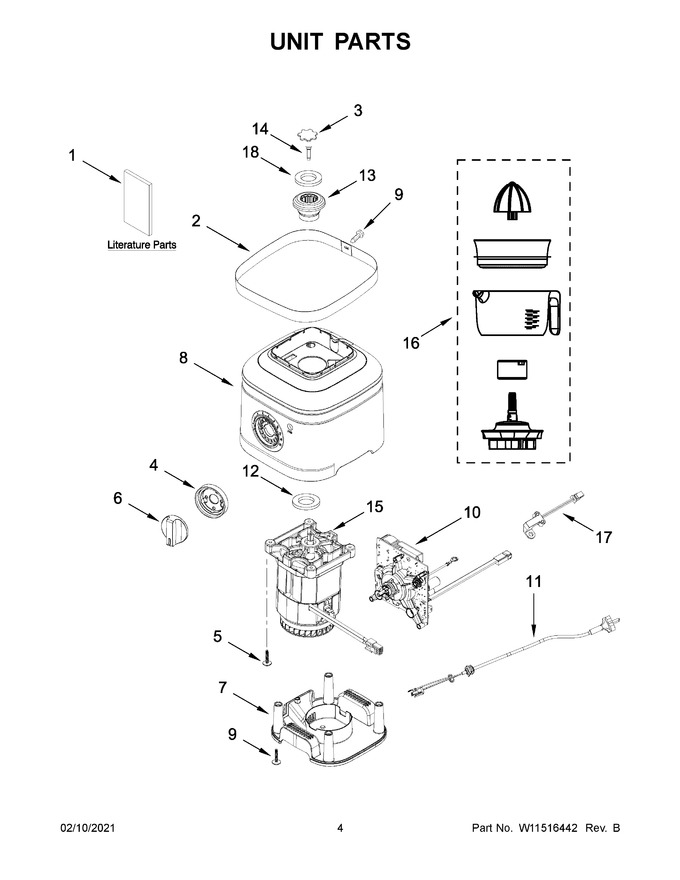

03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11344949		Owner's Manual		Appelez-nous	-
2	W11629045		Trimband   (Replaces: W11105854)		Appelez-nous	-
3	W11486757		Plug, Coupler   (Replaces: W11219397)				$ 8.14
4	W11627537		Bezel, Rotary Switch   (Replaces: W11214276)		Appelez-nous	-
5	WP3395530		Screw   (Replaces: 697773)				$ 8.57
6	W11611304		Knob, Rotary Switch   (Replaces: W11357978)				$ 67.28
7	W11627536		Base   (Replaces: W11180765)		Appelez-nous	-
8	W11629043		Upper Base (onyx Black)   (Replaces: W11305916)		Appelez-nous	-
9	W10276642		Screw				$ 6.41
10	W11580211		Electronic Control   (Replaces: W11405619)		Appelez-nous	-
11	W11390636		Power Cord		Appelez-nous	-
12	WP9709366		Seal, Motor   (Replaces: 9709366)				$ 4.37
13	W11627528		Coupler   (Replaces: W11294881)				$ 12.57
14	W11486756		Screw, Coupler   (Replaces: W11174445)		Appelez-nous	-
15	W11510036		Motor   (Replaces: W11214248)		Appelez-nous	-
16	W11222428		Citrus Press Assembly		Appelez-nous	-
17	W11627538		Reed Switch   (Replaces: W11238803)		Appelez-nous	-
18	W10912260		Shim, Dome   (Replaces: 9704203)			Immediately	$ 4.62
8A	W11447269		Upper Base (empire Red)		Appelez-nous	-
