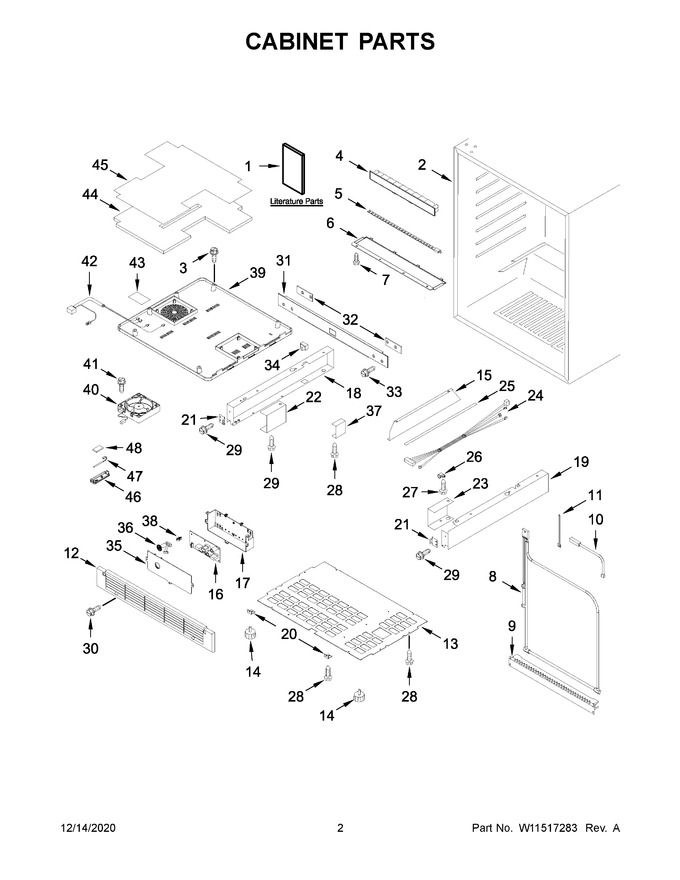

02 - Cabinet Parts
03 - Shelf Parts
04 - Door Parts
05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10797338 | Energy Guide |
|
- | |||||
| 2 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 3 | W10774183 | Screw |
|
- | |||||
| 4 | WPW10797321 | Control Panel Assembly (Replaces: W10797321) |
|
$ 581.23 | |||||
| 5 | W11441723 | Led Light Bar (Replaces: W10797323) |
|
$ 294.65 | |||||
| 6 | W11516842 | Lens, Light |
|
- | |||||
| 7 | W10204808 | Screw (Replaces: W10797324) |
|
- | |||||
| 8 | W10292475 | Thermal Fuse Assembly |
|
$ 491.84 | |||||
| 9 | 4344747 | Shield, Heat |
|
$ 78.49 | |||||
| 10 | W11573590 | Defrost Sensor (Replaces: W10772858) |
|
$ 66.17 | |||||
| 11 | 4344829 | Tie, Cable |
|
- | |||||
| 12 | W10204635 | Kick Plate |
|
$ 192.12 | |||||
| 13 | W10772863 | Cover, Bottom |
|
$ 91.41 | |||||
| 14 | W11106296 | Leg, Leveling (Replaces: 4344763) |
|
$ 19.03 | |||||
| 15 | W10778959 | Auxiliary Plate |
|
- | |||||
| 16 | W11241069 | Main Pcb (Replaces: W10797386) |
|
$ 357.18 | |||||
| 17 | W10772866 | Main Pcb Box |
|
$ 95.98 | |||||
| 18 | W10797388 | Frame (left Hand) |
|
$ 85.26 | |||||
| 19 | W10797389 | Frame (right Hand) |
|
- | |||||
| 20 | W10239388 | Bracket, Grille |
|
- | |||||
| 21 | W10204640 | Mount, Kick Plate (Replaces: W10772865) |
|
$ 79.73 | |||||
| 22 | 4344820 | Support (left Hand) |
|
- | |||||
| 23 | 4344821 | Support (right Hand) |
|
- | |||||
| 24 | W10772870 | Harness Extension |
|
Immediately | $ 134.18 | ||||
| 25 | 4344823 | Seal, Brace |
|
$ 101.83 | |||||
| 26 | W10270482 | Cable Clamp |
|
- | |||||
| 27 | 4344825 | Screw |
|
- | |||||
| 28 | 4344826 | Screw |
|
$ 16.70 | |||||
| 29 | W10780355 | Bolt |
|
$ 50.19 | |||||
| 30 | W10319184 | Screw |
|
- | |||||
| 31 | W10780356 | Frame Front, Bottom |
|
- | |||||
| 32 | W10780357 | Spacer, Frame Front |
|
- | |||||
| 33 | W10780349 | Screw |
|
$ 52.00 | |||||
| 34 | W10721454 | Door Switch |
|
$ 41.81 | |||||
| 35 | W10788698 | Cover, Speaker Sensor |
|
- | |||||
| 36 | W10788693 | Speaker |
|
$ 101.30 | |||||
| 37 | W10788699 | Bracket, Pcb (Replaces: W11516843) |
|
- | |||||
| 38 | W10204659 | Pcb Standoff |
|
$ 59.39 | |||||
| 39 | W10797392 | Fan Cover |
|
- | |||||
| 40 | W10854409 | Motor & Fan (Replaces: W11516846) |
|
Immediately | $ 313.91 | ||||
| 41 | W10205061 | Screw |
|
- | |||||
| 42 | W10797393 | Evaporator Fan Harness (Replaces: W11516848) |
|
- | |||||
| 43 | W10205062 | Terminal Protector |
|
- | |||||
| 44 | W10797394 | Insulation, Fan Cover |
|
- | |||||
| 45 | W10797395 | Cover |
|
- | |||||
| 46 | W10775535 | Sensor Case |
|
- | |||||
| 47 | W11238391 | Temperature Sensor (Replaces: W10772916) |
|
Immediately | $ 130.99 | ||||
| 48 | W10204948 | Sensor Case Seal |
|
- | |||||
| 1A | W10741570 | Use & Care Guide |
|
- |
