01 - Cover Sheet

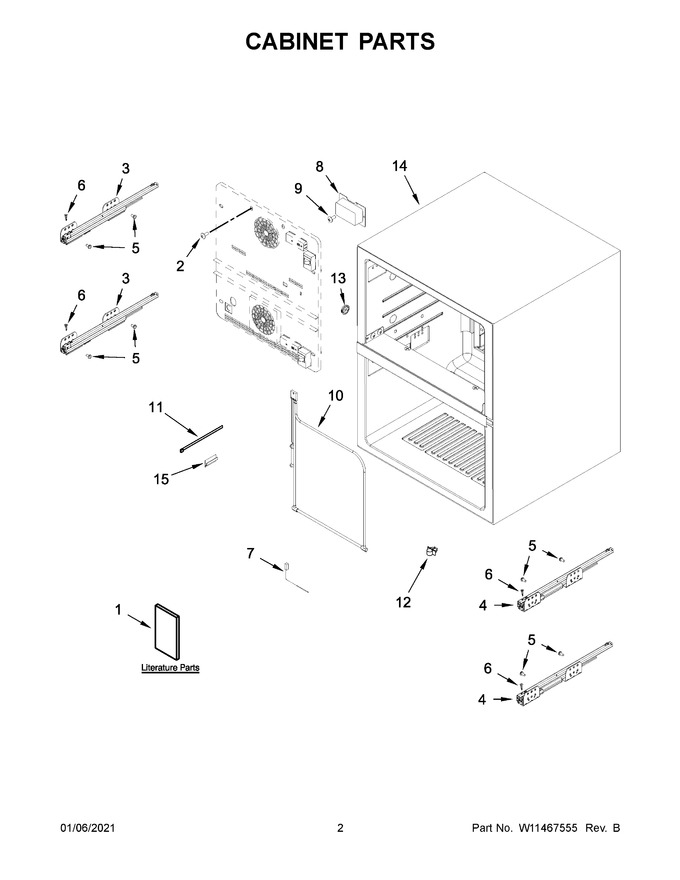

02 - Cabinet Parts
03 - Liner Parts
04 - Upper Drawer Parts
05 - Lower Drawer Parts
06 - Unit Parts
07 - Icemaker Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11467322 | Energy Guide |
|
- | |||||
| 2 | W10774183 | Screw |
|
- | |||||
| 3 | W10621521 | Rail Assembly, Left Hand |
|
$ 364.94 | |||||
| 4 | W10621523 | Rail Assembly, Right Hand |
|
$ 330.09 | |||||
| 5 | W10621524 | Screw |
|
$ 16.10 | |||||
| 6 | W10204809 | Screw |
|
- | |||||
| 7 | W11573590 | Defrost Sensor (Replaces: W10772858) |
|
$ 66.17 | |||||
| 8 | W10788689 | Cover |
|
- | |||||
| 9 | 4344826 | Screw |
|
$ 16.70 | |||||
| 10 | W11466950 | Thermal Fuse Assembly |
|
- | |||||
| 11 | 4344829 | Tie, Cable |
|
- | |||||
| 12 | W10238022 | Clip, Bushing |
|
- | |||||
| 13 | W10621514 | Liner Bushing |
|
$ 31.71 | |||||
| 14 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 15 | W10304193 | Clip, Defrost Heater |
|
- | |||||
| 1A | W10772894 | Tech Sheet |
|
- |
