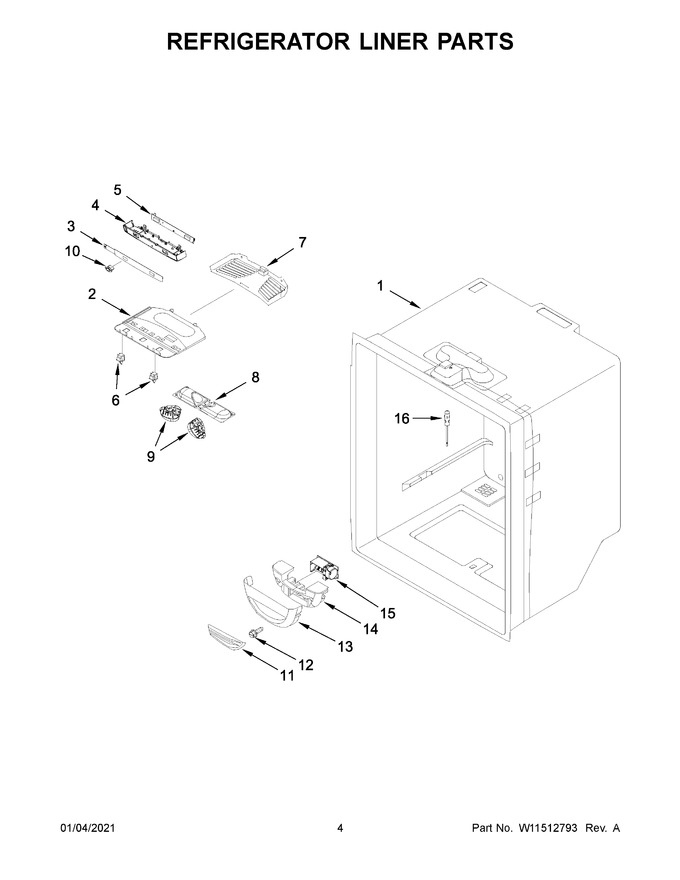

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 2 | W10464764 | Module, Light |
|
$ 118.91 | |||||
| 3 | W11469742 | Overlay, Control (Replaces: W11357424) |
|
Immediately | $ 77.86 | ||||
| 4 | W11469741 | Module, Control (Replaces: W11319776) |
|
$ 42.64 | |||||
| 5 | WPW10503278 | Control, Electronic (Replaces: W10503278) |
|
Immediately | $ 55.44 | ||||
| 6 | W11384469 | Switch, Light (Replaces: W10847853) |
|
Immediately | $ 39.09 | ||||
| 7 | W11284721 | Cover, Light (Replaces: W11132917) |
|
$ 106.02 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 117.74 | ||||
| 9 | W11602886 | Light Module, Led (Replaces: W11251749) |
|
$ 42.63 | |||||
| 10 | W11469740 | Switch, Energy Saver (Replaces: W11311953) |
|
Immediately | $ 38.34 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
Immediately | $ 8.55 | ||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 118.65 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: 13012402) |
|
$ 50.15 | |||||
| 15 | WPW10594330 | Damper, Control (Replaces: W10594330) |
|
Immediately | $ 129.62 | ||||
| 16 | 12002355 | Thermistor (Replaces: 12791403) |
|
Immediately | $ 47.36 | ||||
| NI | W11469743 | Harness, Refrigerator Control (includes Thermistor) (Replaces: W11455468) |
|
$ 136.00 | |||||
| NI | NP | Diverter Valve Motor (not Serviced) |
|
- |
