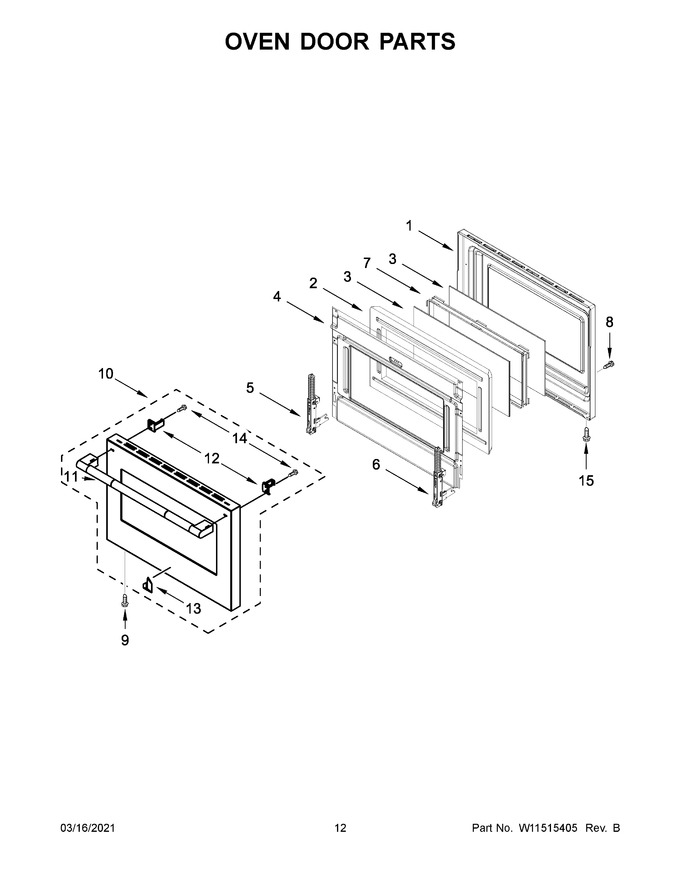

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11334152 | Liner, Door (Replaces: W11036772) |
|
$ 417.57 | |||||
| 2 | W11688331 | Insulation, Door (Replaces: W10884823) |
|
$ 46.39 | |||||
| 3 | W11334153 | Glass, Inner (Replaces: W11036791) |
|
$ 125.70 | |||||
| 4 | W11194820 | Retainer, Glass |
|
$ 190.50 | |||||
| 5 | W11568941 | Hinge, Door (left) (Replaces: W11096978) |
|
Immediately | $ 115.01 | ||||
| 6 | W11568813 | Hinge, Door (right) (Replaces: W11096977) |
|
Immediately | $ 84.80 | ||||
| 7 | W11194814 | Frame, Glass |
|
Immediately | $ 349.83 | ||||
| 8 | W11712404 | Screw (Replaces: W10898280) |
|
Immediately | $ 14.77 | ||||
| 9 | W10162096 | Screw |
|
$ 21.90 | |||||
| 10 | W11315585 | Assembly, Outer Door Glass (includes Handle) (Replaces: W10799310) |
|
$ 1,287.37 | |||||
| 11 | W11334156 | Handle, Door (Replaces: W11102828) |
|
- | |||||
| 12 | W11317513 | Bracket, Handle (Replaces: W11197830) |
|
$ 78.81 | |||||
| 13 | W11317500 | Badge (stainless) (Replaces: W11238656) |
|
$ 111.47 | |||||
| 14 | WPW10276043 | Screw (Replaces: W10276043) |
|
$ 7.30 | |||||
| 15 | W11193480 | Screw (Replaces: W10607120) |
|
$ 14.72 |
