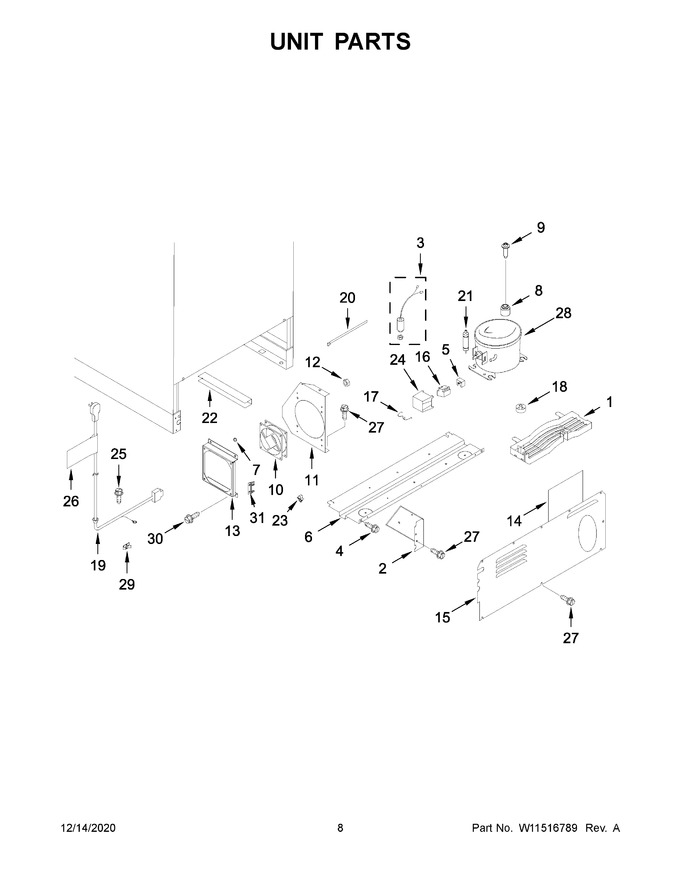

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10316689		Pan, Drain   (Replaces: W11517051)				$ 163.70
2	W10239387		Bracket, Defrost Timer		Appelez-nous	-
3	W10778969		Running Capacitor				$ 130.92
4	4344797		Screw		Appelez-nous	-
5	W10778965		Overload Relay				$ 126.12
6	W10772877		Cabinet Base Plate   (Replaces: W11517060)		Appelez-nous	-
7	W10204688		Fan Bushing		Appelez-nous	-
8	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 8.47
9	W10772873		Bolt		Appelez-nous	-
10	W10772882		Condenser Dc Motor				$ 347.43
11	W10204674		Air Baffle				$ 127.68
12	W10772890		Nut		Appelez-nous	-
13	W11506521		Fan Cover, Condenser   (Replaces: W10772889)		Appelez-nous	-
14	W10778963		Insulation, Rear Cover		Appelez-nous	-
15	W10796445		Cover, Rear   (Replaces: W11517090)		Appelez-nous	-
16	W10778966		Ptc Thermistor				$ 127.56
17	W10778971		Clip, Relay Cover		Appelez-nous	-
18	W10163276		Trap, Drain				$ 90.13
19	WPW10204676		Cord, Power   (Replaces: W10204676)				$ 113.02
20	4344829		Tie, Cable		Appelez-nous	-
21	W10163273		Drier				$ 103.41
22	4344907		Trim, Edge		Appelez-nous	-
23	W10238022		Clip, Bushing		Appelez-nous	-
24	W10778967		Cover, Relay		Appelez-nous	-
25	4344826		Screw				$ 16.70
26	4344913		Warning Label		Appelez-nous	-
27	4344832		Screw		Appelez-nous	-
28	8201787		Compressor   (Replaces: 4344775)				$ 719.23
29	W10281591		Clamp, Cord		Appelez-nous	-
30	W10772886		Screw		Appelez-nous	-
31	W10270517		Clamp, Cord				$ 79.51
NI	NP		Diverter Valve Motor (not Serviced)		Appelez-nous	-
