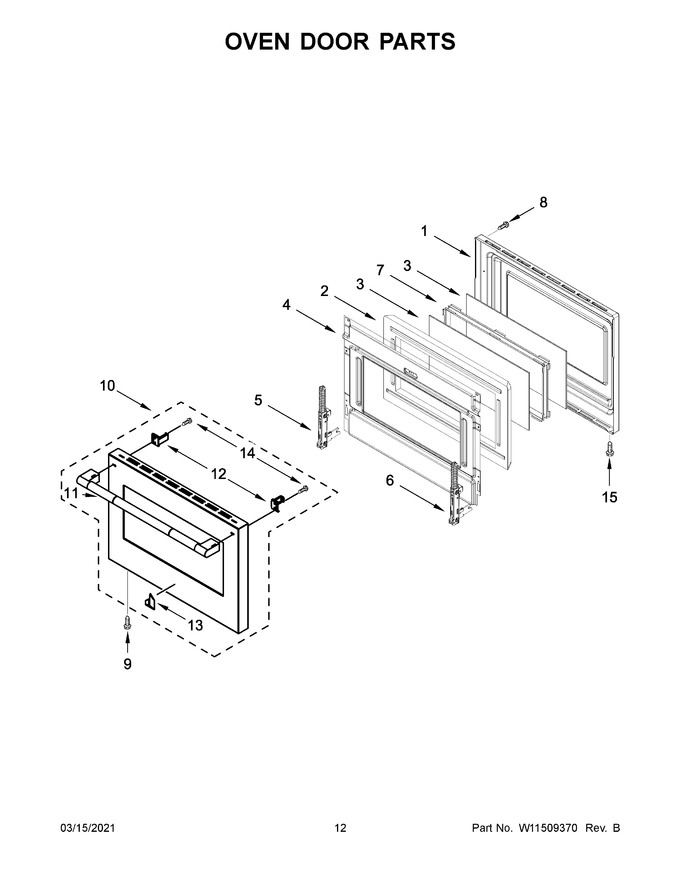

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11318831		Liner, Door   (Replaces: W11036771)			Immediately	$ 430.01
2	W11688537		Insulation, Door (30")   (Replaces: W11413190)				$ 125.80
3	W11318823		Glass, Inner   (Replaces: W11184409)				$ 175.72
4	W11318344		Retainer, Glass   (Replaces: W11194821)			Immediately	$ 184.62
5	W11643630		Hinge, Door (left)   (Replaces: W11390105)			Immediately	$ 195.56
6	W11643898		Hinge, Dual (right)   (Replaces: W11390124)			Immediately	$ 142.45
7	WPW10272594		Frame, Glass   (Replaces: W10272594)			Immediately	$ 197.39
8	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 14.77
9	W10162096		Screw				$ 21.90
10	W11321883		Assembly, Outer Door Glass (includes Handle)   (Replaces: W10799308)			Immediately	$ 1,130.61
11	W11317501		Handle, Door   (Replaces: W11102826)		Appelez-nous	-
12	W11317513		Bracket, Handle   (Replaces: W11197830)				$ 78.81
13	W11317500		Badge (stainless)   (Replaces: W11238656)				$ 111.47
14	WPW10276043		Screw   (Replaces: W10276043)				$ 7.30
15	W11193480		Screw   (Replaces: W10607120)				$ 14.72
