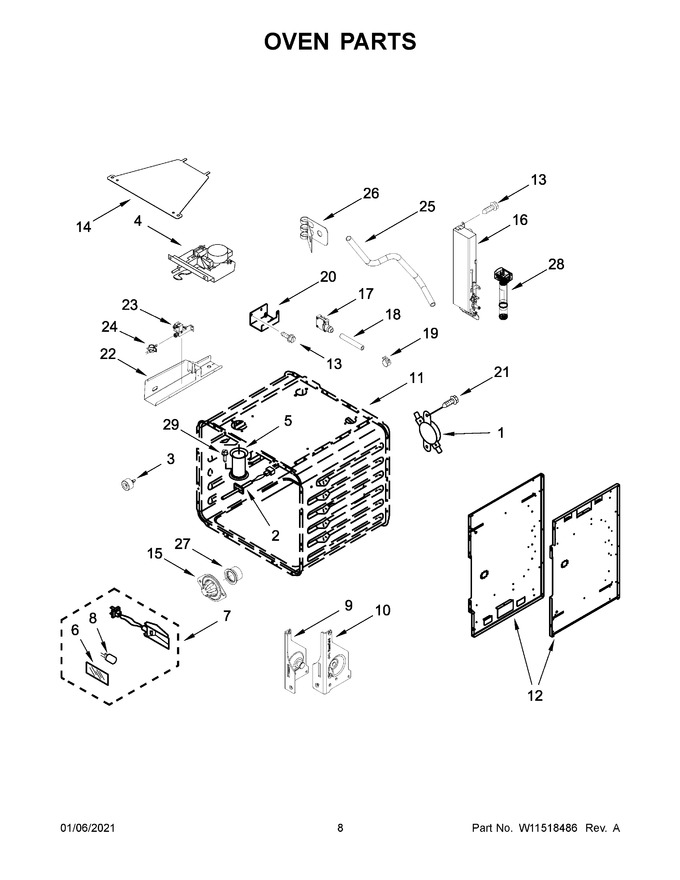

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 2 | W10859573 | Probe, Sensor (Replaces: W10622170) |
|
Immediately | $ 133.83 | ||||
| 3 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 11.01 | |||||
| 4 | W11029221 | Latch, Motorized (Replaces: W10830016) |
|
Immediately | $ 327.65 | ||||
| 5 | W11318343 | Tube, Vent (Replaces: W11290663) |
|
$ 105.43 | |||||
| 6 | W10169756 | Lens, Light |
|
$ 42.19 | |||||
| 7 | W11233684 | Assembly, Oven Light (Replaces: W11223932) |
|
$ 111.33 | |||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 47.38 | ||||
| 9 | W11096294 | Receiver, Hinge (left) |
|
- | |||||
| 10 | W11096293 | Receiver, Hinge (right) |
|
- | |||||
| 11 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 12 | W11320145 | Chassis, Side (left) (Replaces: W11102297) |
|
$ 254.37 | |||||
| 13 | 7101P42660 | Screw |
|
- | |||||
| 14 | W10160858 | Cover, Latch |
|
$ 76.94 | |||||
| 15 | W11177696 | Cover, Boiler Orifice |
|
- | |||||
| 16 | 8186352 | Assembly, Boiler (Replaces: W10864671) |
|
$ 345.43 | |||||
| 17 | W10194453 | Switch, Pressure |
|
$ 254.00 | |||||
| 18 | WPW10076930 | Hose, Silicone (translucent) (Replaces: W10076930) |
|
$ 23.82 | |||||
| 19 | WP489503 | Clamp, Crimp (black) (Replaces: 9761147) |
|
Immediately | $ 11.29 | ||||
| 20 | W10331561 | Bracket, Steam Mount |
|
- | |||||
| 21 | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 7.55 | |||||
| 22 | W10160877 | Enclosure, Steam Valve |
|
- | |||||
| 23 | W10111418 | Valve, Solenoid |
|
$ 151.74 | |||||
| 24 | WPW10076760 | Sensor, Conductivity Slip Fit (Replaces: W10076760) |
|
$ 210.13 | |||||
| 25 | W11334756 | Tube, Copper |
|
- | |||||
| 26 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.92 | |||||
| 27 | W11092978 | Orifice, Boiler Slip Fit |
|
- | |||||
| 28 | WPW10049700 | Filter (Replaces: W10049700) |
|
$ 365.41 | |||||
| 29 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 12A | W11320144 | Chassis, Side (right) (Replaces: W11102296) |
|
$ 246.66 | |||||
| 18A | W10116067 | Hose, Silicone (red) |
|
- | |||||
| 19A | WP489503 | Clamp, Crimp (red) (Replaces: 9761146) |
|
Immediately | $ 11.29 | ||||
| NI | W11688743 | Insulation, Wrap (Replaces: W10282811) |
|
- | |||||
| NI | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 8.36 | ||||
| NI | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| NI | W11688806 | Insulation, Back (Replaces: W10282815) |
|
- |
