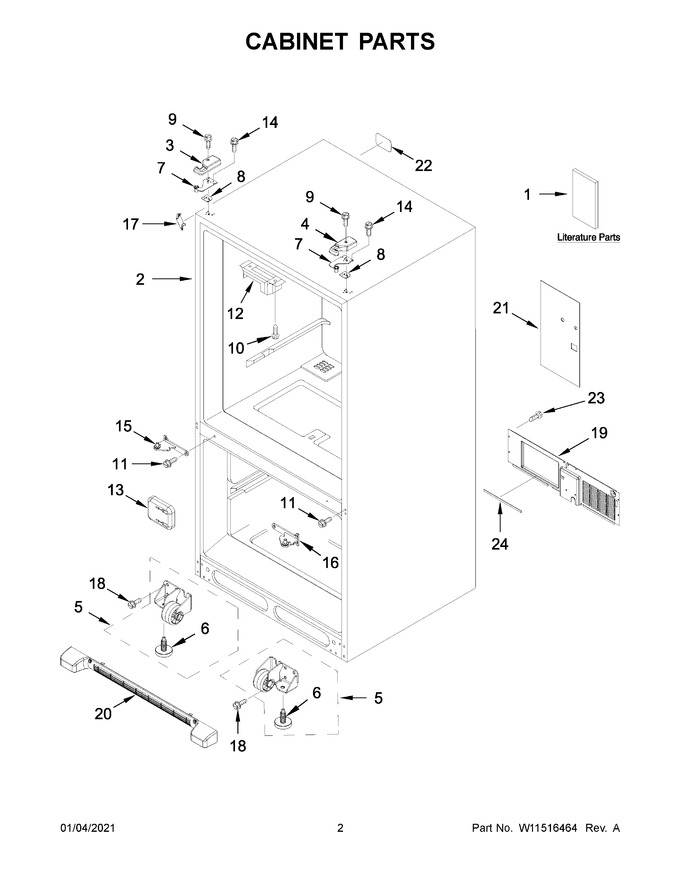

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11296635 | Use And Care Guide |
|
- | |||||
| 2 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 3 | WPW10337634 | Cover, Top Hinge (left Hand (includes Foil) White) (Replaces: W10337634) |
|
Immediately | $ 23.54 | ||||
| 4 | 67005958 | Cover, Top Hinge (right Hand White) (Replaces: 12962302W) |
|
$ 21.57 | |||||
| 5 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204ED) |
|
$ 31.92 | |||||
| 8 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 99.53 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 13 | W11281081 | Cover, Fill Tube (Replaces: W11182229) |
|
- | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918115 | Hinge, Center (left Hand White) (Replaces: W10740148) |
|
$ 22.89 | |||||
| 16 | W10918117 | Hinge, Center (right Hand White) (Replaces: W10740144) |
|
$ 23.79 | |||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 22.90 | |||||
| 18 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 19 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 206.23 | |||||
| 20 | WPW10534161 | Grille, Toe (white) (Replaces: W10534161) |
|
$ 147.09 | |||||
| 21 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 21.36 | |||||
| 22 | W11685757 | Label, Fill Tube (Replaces: 12249902) |
|
$ 7.41 | |||||
| 23 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 24 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 1A | W11308954 | Energy Guide |
|
- | |||||
| 1B | W10787418 | Tech Sheet (english) |
|
- | |||||
| 1C | W10787417 | Tech Sheet (french) |
|
- | |||||
| 5A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 7B | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 31.90 | ||||
| 8A | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 100.60 |
