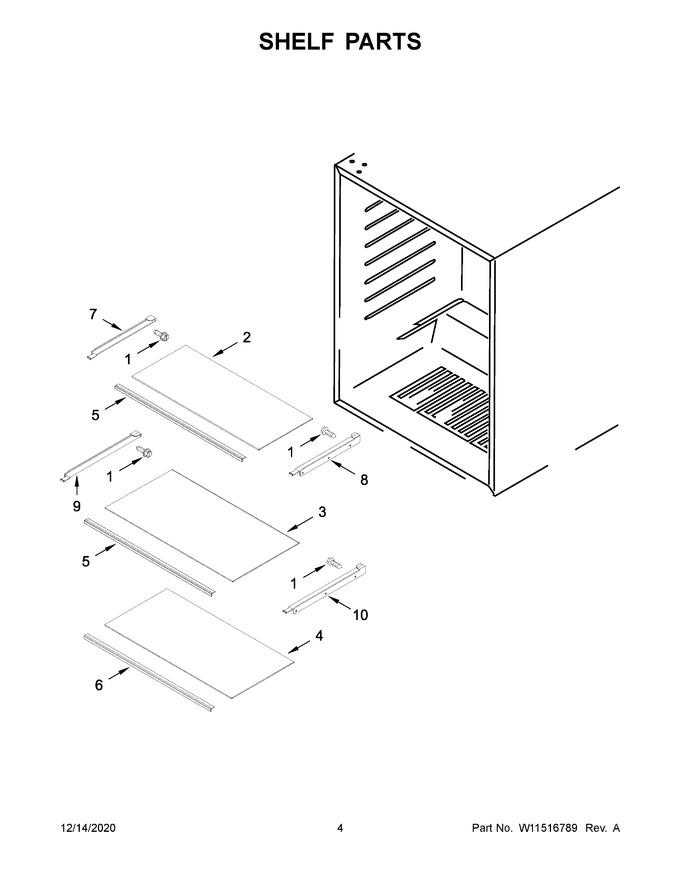

03 - Shelf Parts
04 - Door Parts
05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319184 | Screw |
|
- | |||||
| 2 | WPW10797325 | Glass Shelf, Top (Replaces: W11517070) |
|
$ 265.09 | |||||
| 3 | W11521235 | Glass Shelf, Middle (Replaces: W11517077) |
|
- | |||||
| 4 | W11517083 | Glass Shelf, Bottom |
|
- | |||||
| 5 | W10797328 | Trim, Shelf |
|
- | |||||
| 6 | W10797330 | Trim, Shelf |
|
$ 128.11 | |||||
| 7 | W10797332 | Support, Shelf (left Hand) |
|
$ 30.15 | |||||
| 8 | W10797333 | Support, Shelf (right Hand) |
|
$ 30.15 | |||||
| 9 | W10797336 | Support, Shelf (left Hand) |
|
- | |||||
| 10 | W10797337 | Support, Shelf (right Hand) |
|
- |
