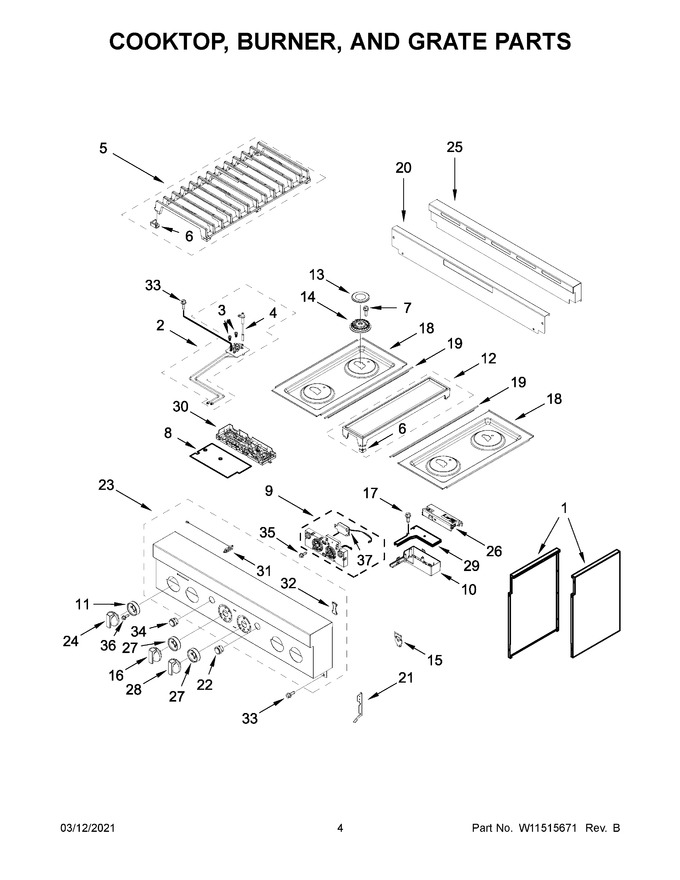

03 - Cooktop, Burner, And Grate Parts


04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11333179		Panel, Cabinet Side (left)   (Replaces: W11106881)				$ 419.69
2	W11333305		Assembly, Orifice Holder (left Front)   (Replaces: W10892793)				$ 125.39
3	W11643164		Orifice, Main (17.4k) (left Front)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter (left Front, Left Rear, Right Front)   (Replaces: W11238757)			Immediately	$ 23.48
5	W11516449		Assembly, Grate (black (left))   (Replaces: W11172289)				$ 265.06
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 12.72
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11492291		Interface, User   (Replaces: W11436328)				$ 573.94
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11317889		Bezel, Cooktop (for 4 Cooktop Burners)   (Replaces: W11090284)				$ 106.87
12	W11516488		Kit, Grate Filler   (Replaces: W11172800)		Appelez-nous	-
13	W11328971		Cap, Burner (black (set Of 4))   (Replaces: W11121391)				$ 173.40
14	W11319683		Spreader, Flame (high) (left Front, Left Rear, Right Front)   (Replaces: W10891987)			Immediately	$ 250.69
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11397970		Knob, Oven Mode (stainless)   (Replaces: W11317854)				$ 164.32
17	7101P62460		Screw		Appelez-nous	-
18	W11316700		Panel, Cooktop (black (left))   (Replaces: W11038237)				$ 502.01
19	W10271524		Trim, T-strip (black)				$ 212.34
20	W10323248		Insert, Island Trim				$ 268.00
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
23	W11289589		Panel, Console   (Replaces: W11253776)				$ 717.72
24	W11317537		Knob, Burner (for 4 Cooktop Burners) (stainless)   (Replaces: W10887596)			Immediately	$ 155.66
25	W11477029		Trim, Island				$ 385.64
26	W11234290		Assembly, Wifi Module   (Replaces: W11110768)				$ 179.89
27	W11317892		Bezel, Oven (for 2 Oven Knobs) (stainless)   (Replaces: W11042375)				$ 110.74
28	W11317539		Knob, Oven Temperature (stainless)   (Replaces: W10891868)				$ 154.22
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11356591		Manager, Appliance (powermax)   (Replaces: W11100274)				$ 557.56
31	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
32	W11318856		Assembly, Light Pipe   (Replaces: W10896369)				$ 109.35
33	7101P42660		Screw		Appelez-nous	-
34	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11509770		Screw   (Replaces: W11328357)				$ 14.23
37	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
14A	W11319673		Spreader, Flame (low) (right Rear)   (Replaces: W10892022)			Immediately	$ 229.46
18A	W11333312		Panel, Cooktop (black (right))   (Replaces: W11038253)				$ 475.25
1A	W11333303		Panel, Cabinet Side (right)   (Replaces: W11106880)				$ 421.41
21A	W10130759		Bracket, Moving Console (right)				$ 75.94
2A	W11333306		Assembly, Orifice Holder (left Rear)   (Replaces: W10892494)			Immediately	$ 127.98
2B	W11333307		Assembly, Orifice Holder (right Front)   (Replaces: W10892475)			Immediately	$ 125.23
2C	W11333309		Assembly, Orifice Holder (right Rear)   (Replaces: W10892730)				$ 122.96
3A	W10892418		Orifice, Main (15.4k) (left Rear And Right Front)			Immediately	$ 103.03
3B	W10892440		Orifice, Main (7.2k) (right Rear)				$ 99.86
3C	W11661909		Orifice, Simmer (2.6k) (left Front, Left Rear, Right Front)   (Replaces: W10892435)			Immediately	$ 74.14
3D	W10892429		Orifice, Simmer (2.0k) (right Rear)				$ 99.86
4A	W11238756		Igniter (right Rear)			Immediately	$ 67.96
5A	W11516462		Assembly, Grate (black (right))   (Replaces: W11172625)				$ 265.07
