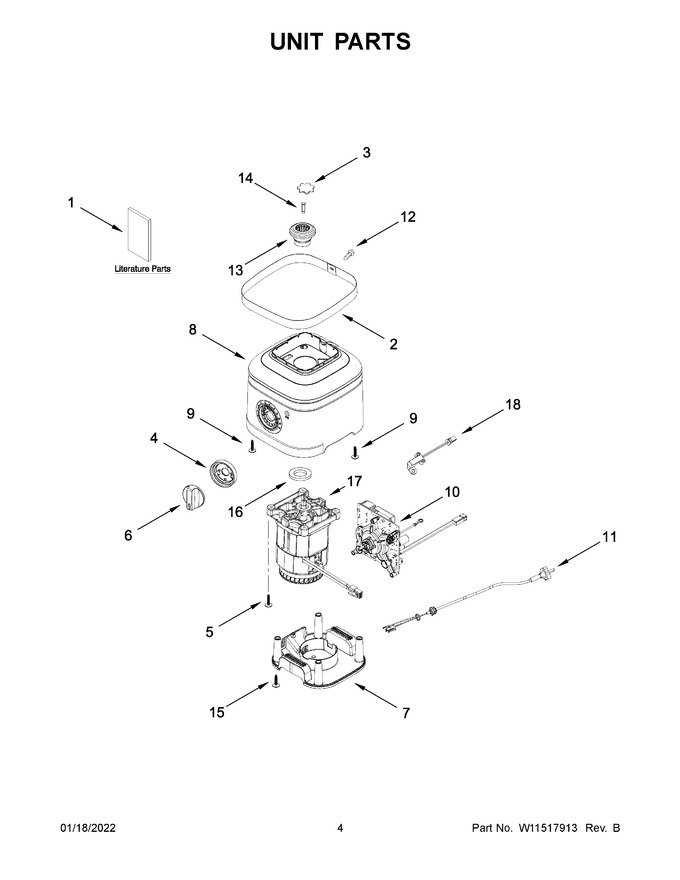

03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11434075 | Use & Care Guide |
|
- | |||||
| 2 | W11354596 | Trimband |
|
- | |||||
| 3 | W11486757 | Plug, Coupler (Replaces: W11219397) |
|
$ 8.14 | |||||
| 4 | W11627537 | Bezel, Rotary Switch (Replaces: W11214276) |
|
- | |||||
| 5 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 6 | W11611304 | Knob, Rotary Switch (Replaces: W11357978) |
|
$ 67.28 | |||||
| 7 | W11684609 | Base (Replaces: W11183716) |
|
- | |||||
| 8 | W11487489 | Upper Base (honey) |
|
- | |||||
| 9 | W10276642 | Screw |
|
$ 6.41 | |||||
| 10 | W11580223 | Electronic Control (Replaces: W11405623) |
|
- | |||||
| 11 | W11445186 | Cord, Power (china) |
|
- | |||||
| 12 | WP3196170 | Screw (Replaces: 3400617) |
|
$ 7.55 | |||||
| 13 | W11627528 | Coupler (Replaces: W11294881) |
|
$ 12.57 | |||||
| 14 | W11486756 | Screw, Coupler (Replaces: W11174445) |
|
- | |||||
| 15 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 16 | W11643384 | Seal, Motor (Replaces: W11211960) |
|
Immediately | $ 23.63 | ||||
| 17 | W11443916 | Motor (Replaces: W11187673) |
|
- | |||||
| 18 | W11627538 | Reed Switch (Replaces: W11238803) |
|
- | |||||
| 8A | W11548807 | Upper Base (beetroot) |
|
- |
