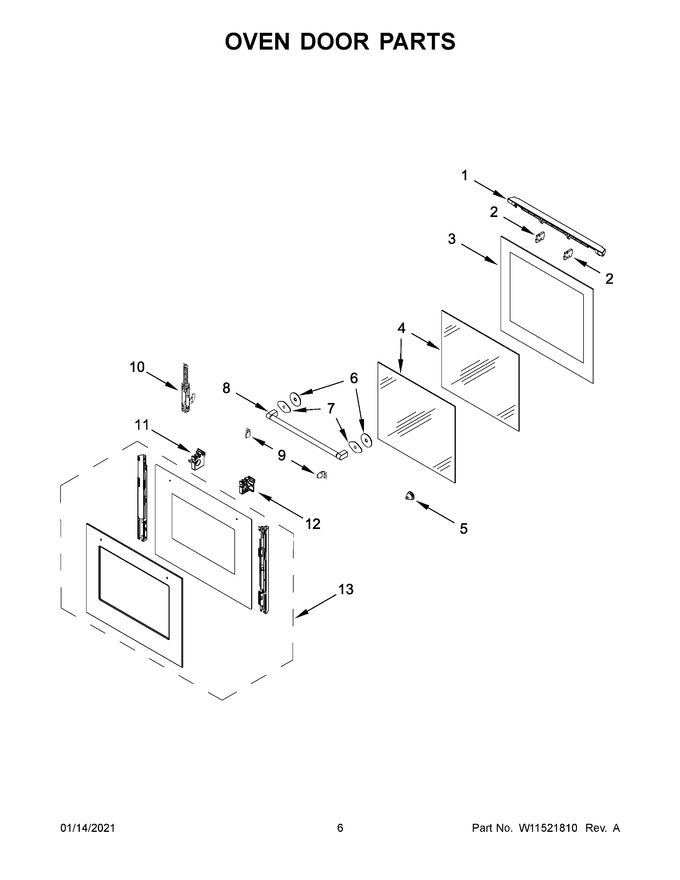

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10518369 | Vent, Door Trim Top |
|
Immediately | $ 125.64 | ||||
| 2 | W10518307 | Spacer, Door Trim Top |
|
$ 21.97 | |||||
| 3 | W11348805 | Glass, Door Inner Assembly (Replaces: 480121101609) |
|
$ 181.47 | |||||
| 4 | W11778507 | Glass, Door Inner (Replaces: W10518376) |
|
$ 175.92 | |||||
| 5 | W10519004 | Spacer, Oven Door Glass |
|
$ 23.37 | |||||
| 6 | W11236907 | Spacer, Door Handle (Replaces: W10410709) |
|
$ 18.24 | |||||
| 7 | W10260705 | Spacer, Rubber |
|
- | |||||
| 8 | W11509870 | Handle, Door |
|
- | |||||
| 9 | 481010387617 | Support, Oven Door Glass |
|
$ 115.61 | |||||
| 10 | W11509868 | Hinges, Door |
|
- | |||||
| 11 | W11509863 | Support, Oven Glass |
|
$ 140.41 | |||||
| 12 | W10518384 | Support, Oven Door Glass |
|
$ 121.40 | |||||
| 13 | W11509871 | Door, Oven Outer Assembly |
|
Immediately | $ 593.88 |
