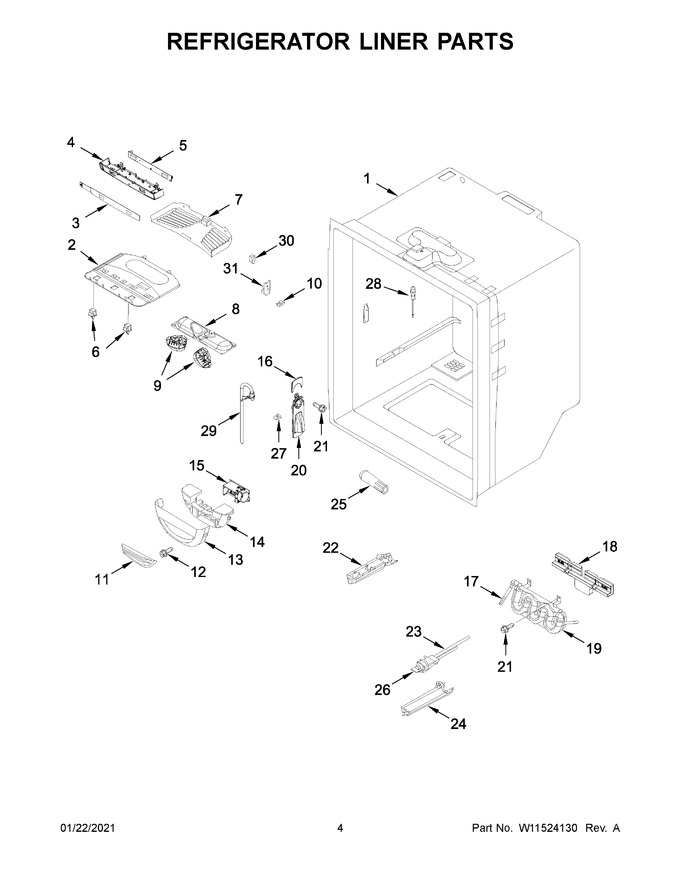

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Pedestal (refer To Color Variation Parts Page) |
|
- | |||||
| 2 | W10464764 | Module, Light |
|
$ 118.91 | |||||
| 3 | W10678159 | Overlay |
|
$ 297.15 | |||||
| 4 | W11416469 | Module, Control (Replaces: W10464767) |
|
Immediately | $ 234.84 | ||||
| 5 | WPW10746274 | Board, Control (Replaces: W10746274) |
|
Immediately | $ 310.12 | ||||
| 6 | W11384469 | Switch, Light (Replaces: W10847853) |
|
Immediately | $ 39.09 | ||||
| 7 | W11284721 | Cover, Light (Replaces: W11132917) |
|
$ 106.02 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 117.74 | ||||
| 9 | W11602886 | Light Module, Led (Replaces: W11251749) |
|
$ 42.63 | |||||
| 10 | 67002816 | Clip, Water Tube (Replaces: 12251001) |
|
$ 19.15 | |||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
Immediately | $ 8.55 | ||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 118.65 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: 13012402) |
|
$ 50.15 | |||||
| 15 | WPW10594329 | Control, Damper (Replaces: W10594329) |
|
Immediately | $ 171.52 | ||||
| 16 | W11519867 | Facade, Dispenser (top) (Replaces: 12707005) |
|
Immediately | $ 26.35 | ||||
| 17 | WP2300868 | Union, Water (Replaces: 61006182) |
|
Immediately | $ 29.05 | ||||
| 18 | WPW10163893 | Insulation, Tank (Replaces: W10163893) |
|
$ 96.31 | |||||
| 19 | W11229977 | Tank, Water (Replaces: W11097710) |
|
Immediately | $ 101.58 | ||||
| 20 | WPW10585703 | Facade, Dispenser (Replaces: W10585703) |
|
Immediately | $ 77.97 | ||||
| 21 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 22 | WP67001668 | Plate, Filter (Replaces: 12704801) |
|
Immediately | $ 16.75 | ||||
| 23 | W11844302 | Head, Water Filter (includes Bypass Cartridge) (Replaces: W11308018) |
|
$ 154.88 | |||||
| 24 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 86.76 | ||||
| 25 | EDR4RXD1B | Filter, Water (Replaces: W11256384) |
|
Immediately | $ 49.99 | ||||
| 26 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 27 | W10819546 | Clip, Facade (Replaces: B8390302) |
|
$ 13.14 | |||||
| 28 | W11690896 | Thermistor (Replaces: 12791416) |
|
Immediately | $ 29.76 | ||||
| 29 | W11677725 | Guide, Waterline (Replaces: W11031909) |
|
Immediately | $ 24.76 | ||||
| 30 | WP12575501 | Switch, Limit (Replaces: 12575501) |
|
$ 72.35 | |||||
| 31 | W11515355 | Plate, Dispenser (Replaces: W11437528) |
|
Immediately | $ 8.58 | ||||
| NI | NP | Pedestal (refer To Color Variation Parts Page) |
|
- | |||||
| NI | WPW10224292 | Harness, Controls (refrigerator) (Replaces: W10224292) |
|
Immediately | $ 135.38 |
