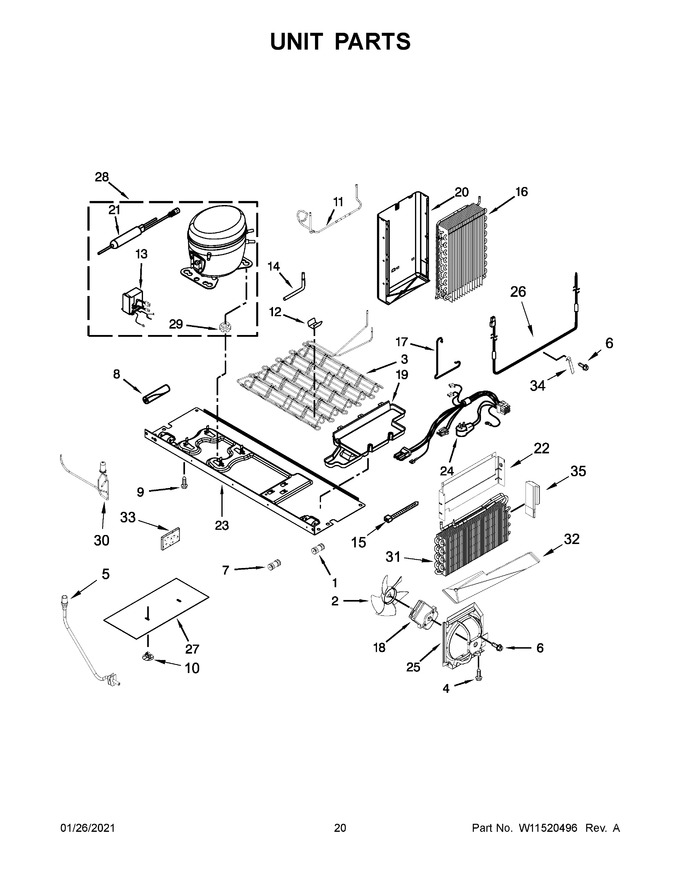

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10271543 | Connector, Water Tube (Replaces: W10271543) |
|
Immediately | $ 35.43 | ||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11708426 | Assembly, Condenser (Replaces: W10240365) |
|
$ 271.19 | |||||
| 4 | W10142255 | Screw |
|
- | |||||
| 5 | W11409190 | Tube, Drain (Replaces: W10862105) |
|
Immediately | $ 65.34 | ||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.61 | ||||
| 7 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 69.57 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 9 | 3400524 | Screw (Replaces: W10142287) |
|
$ 13.28 | |||||
| 10 | W10296661 | Clip, Bottom Cover |
|
$ 17.78 | |||||
| 11 | WPW10223328 | Tube, Suction (Replaces: W10223328) |
|
$ 92.85 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | W11087200 | Assembly, Inverter Box (Replaces: W10710090) |
|
Immediately | $ 228.40 | ||||
| 14 | 2325479 | Tube, Process |
|
- | |||||
| 15 | WP2205813 | Tie, Wire (Replaces: 2205813) |
|
$ 8.11 | |||||
| 16 | WPW10239732 | Evaporator (Replaces: W10239732) |
|
Immediately | $ 352.65 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 185.05 | ||||
| 19 | W10714793 | Tray, Evaporator (includes Gasket) |
|
$ 164.33 | |||||
| 20 | W10376319 | Heat Shield |
|
$ 115.98 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10286069) |
|
Immediately | $ 30.78 | ||||
| 22 | W11528673 | Assembly, Heat Shield (Replaces: W11246034) |
|
- | |||||
| 23 | W10680691 | Baseplate |
|
- | |||||
| 24 | W11661927 | Assembly, Unit Wire (Replaces: W11025794) |
|
$ 107.92 | |||||
| 25 | WPW10251467 | Baffle, Air (Replaces: W10251467) |
|
$ 84.80 | |||||
| 26 | W10857624 | Heater, Defrost (Replaces: W10495968) |
|
$ 141.75 | |||||
| 27 | W10284726 | Cover, Unit Bottom |
|
$ 115.91 | |||||
| 28 | W10779331 | Compressor (Replaces: W10695094) |
|
$ 1,044.35 | |||||
| 29 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 15.21 | |||||
| 30 | W11590197 | Coil, 3 Way Valve (Replaces: W11241893) |
|
Immediately | $ 114.11 | ||||
| 31 | W11505166 | Evaporator, Dual-rc (Replaces: W11209389) |
|
$ 412.56 | |||||
| 32 | W11720794 | Pan, Drip (Replaces: W10317862) |
|
$ 147.99 | |||||
| 33 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 34 | W11611126 | Probe, Heat (Replaces: W10895163) |
|
$ 23.16 | |||||
| 35 | W11512404 | Eps Back (right Hand) (Replaces: W11265707) |
|
- | |||||
| 35A | W11512406 | Eps Back (left Hand) (Replaces: W11265706) |
|
- | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 95.92 | ||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 137.25 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 134.49 | ||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | NP | Pedestal (refer To Color Variation Parts Page) |
|
- |
