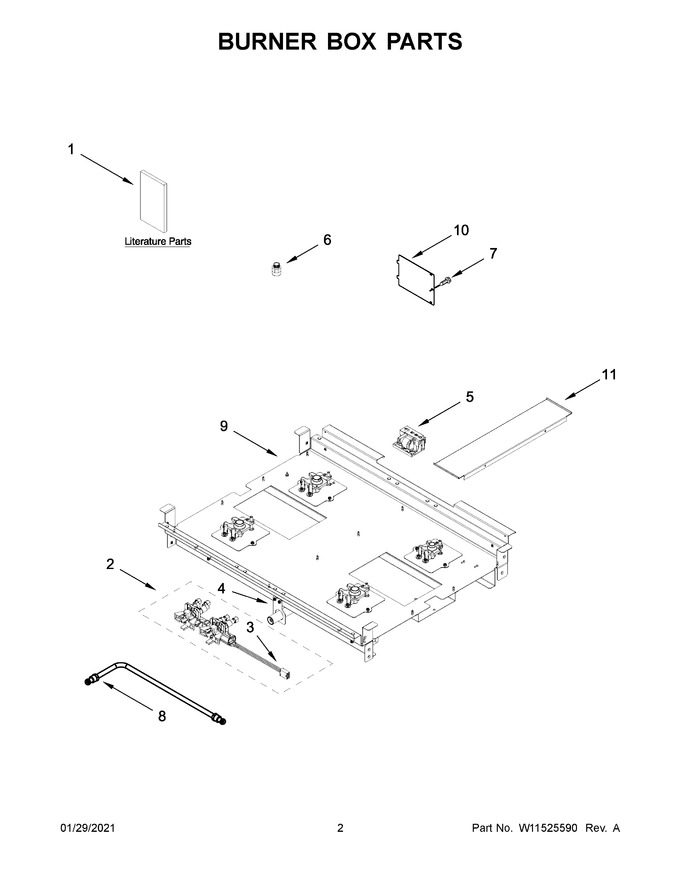

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11114331 | Guide, Use And Care |
|
- | |||||
| 2 | W11378578 | Assembly, Valve Manifold (left Front, Left Rear) (Replaces: W10892994) |
|
Immediately | $ 226.61 | ||||
| 3 | W11344433 | Switch, Harness (Replaces: W10903728) |
|
$ 191.56 | |||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 79.97 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 81.60 | ||||
| 6 | 4453116 | Adapter, Male |
|
$ 179.43 | |||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11378580 | Tube, Manifold Supply (left) (Replaces: W10892281) |
|
$ 177.38 | |||||
| 9 | NP | Pedestal (refer To Color Variation Parts Page) |
|
- | |||||
| 10 | W10115843 | Cover, Ignition |
|
- | |||||
| 11 | W11121361 | Filler, Cooktop |
|
$ 465.65 | |||||
| 1A | W11114334 | Instructions, Installation |
|
- | |||||
| 1B | W11184759 | Guide, Internet Connectivity |
|
- | |||||
| 1C | W11202391 | Diagram, Wiring (cooktop) |
|
- | |||||
| 1D | W11202385 | Diagram, Wiring (oven) |
|
- | |||||
| 1E | W11202289 | Sheet, Tech |
|
- | |||||
| 1F | W11114332 | Guide, Quick Start |
|
- | |||||
| 2A | W11378579 | Assembly, Valve Manifold (right Front, Right Rear) (Replaces: W10892997) |
|
Immediately | $ 371.72 | ||||
| 8A | W11378581 | Tube, Manifold Supply (right) (Replaces: W10892292) |
|
- | |||||
| NI | W10780278 | Harness, Door Lock |
|
Immediately | $ 95.87 | ||||
| NI | W11200328 | Harness, Cooktop |
|
$ 199.91 | |||||
| NI | W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 59.88 | |||||
| NI | W11502161 | Kit, Lp Conversion (Replaces: W11238042) |
|
Immediately | $ 79.21 | ||||
| NI | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| NI | NP | Pedestal (refer To Color Variation Parts Page) |
|
- | |||||
| NI | WP9759877 | Retainer, Strain Relief (Replaces: 9759877) |
|
$ 20.21 | |||||
| NI | W11321066 | Cord, Power (Replaces: W11212216) |
|
$ 118.94 | |||||
| NI | W11317791 | Harness, Wifi (Replaces: W11242785) |
|
$ 113.72 | |||||
| NI | W11200325 | Harness, Communication |
|
$ 116.19 | |||||
| NI | W11200301 | Harness, Main (30") |
|
- |
