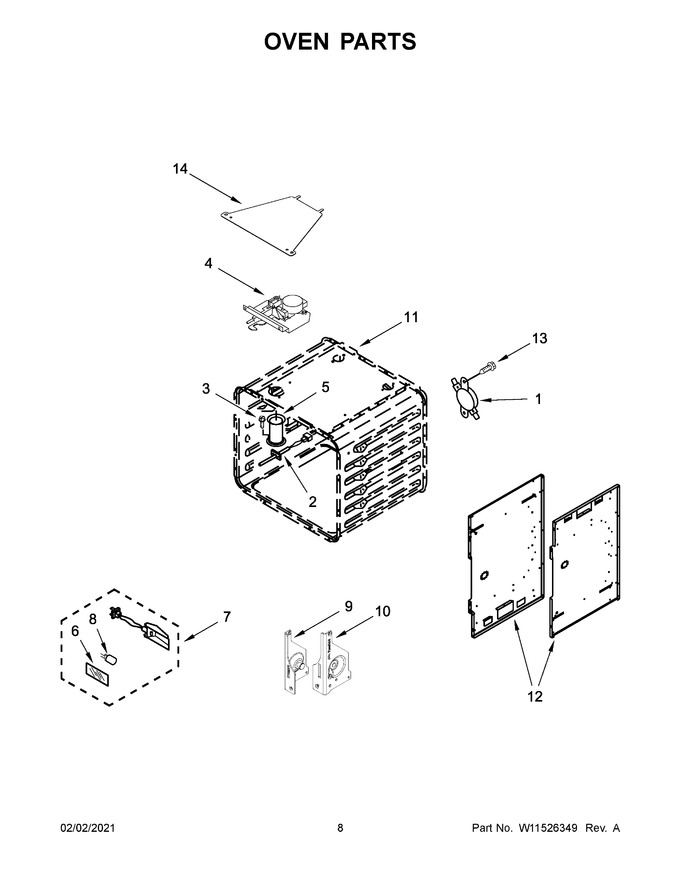

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
2	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
3	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
4	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 327.65
5	W11318343		Tube, Vent   (Replaces: W11290663)				$ 105.43
6	W10169756		Lens, Light				$ 42.19
7	W11233684		Assembly, Oven Light   (Replaces: W11223932)				$ 111.33
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	W11096294		Receiver, Hinge (left)		Appelez-nous	-
10	W11096293		Receiver, Hinge (right)		Appelez-nous	-
11	NP		Pedestal (refer To Color Variation Parts Page)		Appelez-nous	-
12	W11320145		Chassis, Side (left)   (Replaces: W11102297)				$ 254.37
13	7101P42660		Screw		Appelez-nous	-
14	W10160858		Cover, Latch				$ 76.94
12A	W11320144		Chassis, Side (right)   (Replaces: W11102296)				$ 246.66
NI	W11688743		Insulation, Wrap   (Replaces: W10282811)		Appelez-nous	-
NI	W11688538		Insulation, Back, 36   (Replaces: W10282813)		Appelez-nous	-
NI	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
NI	NP		Pedestal (refer To Color Variation Parts Page)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
