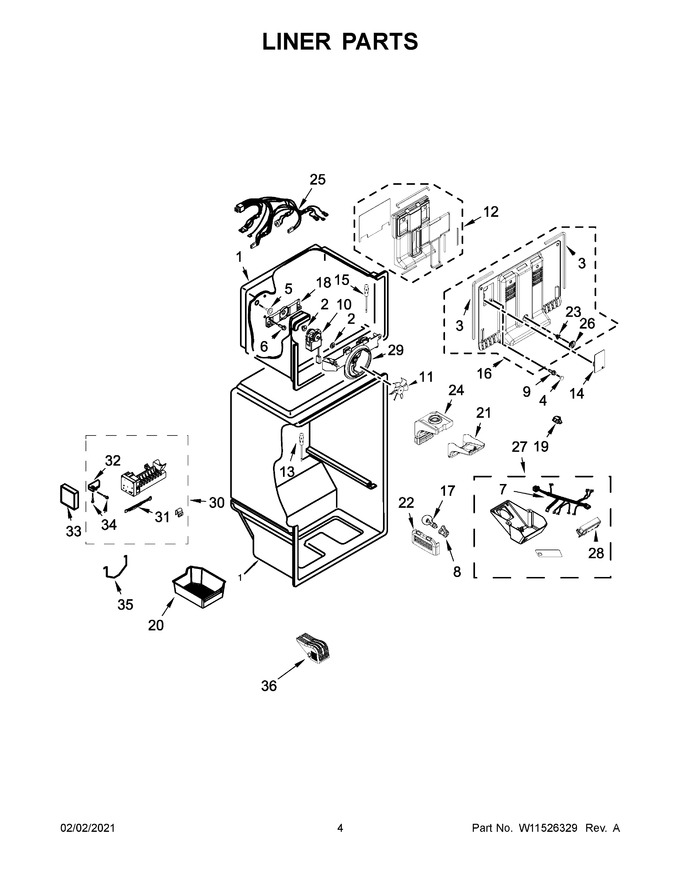

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Pedestal (refer To Color Variation Parts Page) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10709194) |
|
Immediately | $ 95.69 | ||||
| 4 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 9.88 | |||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 8.03 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 7 | W11436564 | Wire Assembly, Control Box (Replaces: W11203360) |
|
Immediately | $ 76.11 | ||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 98.07 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 107.61 | ||||
| 12 | W10919804 | Assembly, Evaporator Plenum (Replaces: W10676682) |
|
Immediately | $ 101.06 | ||||
| 13 | W11438736 | Thermistor, Refrigerator (Replaces: W11108173) |
|
Immediately | $ 114.16 | ||||
| 14 | W10763751 | Cover, Hole |
|
- | |||||
| 15 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 16 | W11024683 | Cover, Evaporator (Replaces: W10668482) |
|
$ 245.60 | |||||
| 17 | W11216993 | Lamp, Led (Replaces: W11125625) |
|
Immediately | $ 52.46 | ||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 75.44 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: W11428639) |
|
Immediately | $ 39.09 | ||||
| 20 | W11625904 | Pan, Ice Cube (Replaces: W10898951) |
|
$ 67.83 | |||||
| 21 | W11256504 | Cover, Air Diffuser (Replaces: W10705209) |
|
$ 89.12 | |||||
| 22 | W10638176 | Cup, Air Diffuser |
|
$ 109.60 | |||||
| 23 | W11244470 | Baffle, Air Manual (Replaces: W10570951) |
|
$ 85.54 | |||||
| 24 | W10861170 | Assembly, Air Diffuser (Replaces: W10633587) |
|
Immediately | $ 78.06 | ||||
| 25 | W11551368 | Assembly, Evaporator Fan Wire (includes Thermal Fuse) (Replaces: W11200746) |
|
$ 95.62 | |||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 91.85 | |||||
| 27 | W11353813 | Assembly, Box Control (Replaces: W11207397) |
|
Immediately | $ 187.48 | ||||
| 28 | W11436574 | Control, Electronic (Replaces: W11176863) |
|
Immediately | $ 166.67 | ||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 30 | W11542654 | Assembly, Icemaker (Replaces: W11381373) |
|
Immediately | $ 274.90 | ||||
| 31 | W11643622 | Assembly, Ice Maker Wire (Replaces: W11257307) |
|
$ 28.48 | |||||
| 32 | W11500948 | Bracket, Icemaker Mounting (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 33 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 8.82 | ||||
| 34 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 35 | W10646481 | Arm, Shut Off |
|
- | |||||
| 36 | W11512421 | Cover, Light (Replaces: W11242281) |
|
$ 15.82 |
