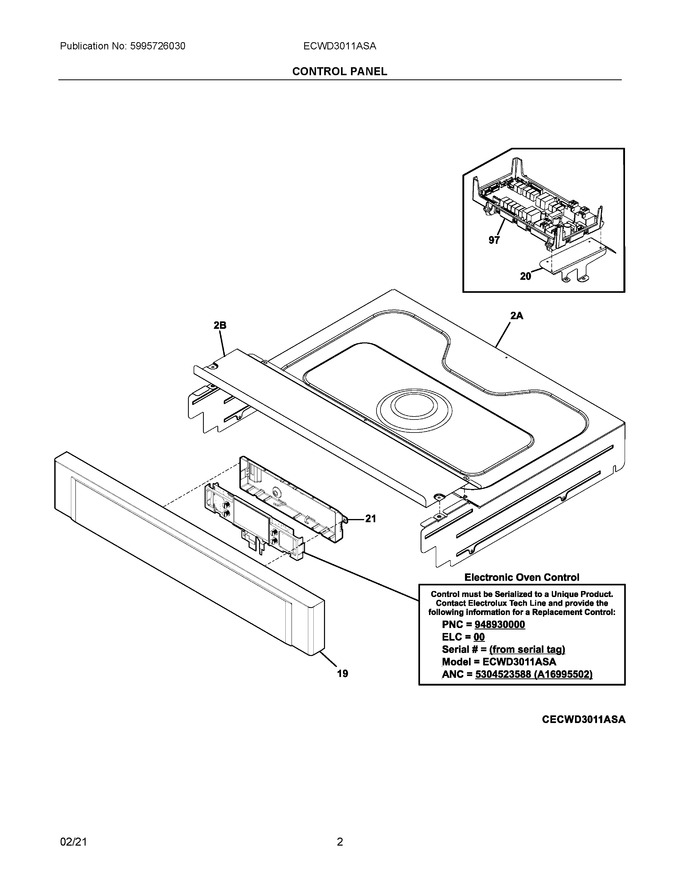

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	5304523595		Control Panel, Assembly, Glass/steel, Black/stainless				$ 328.85
20	5304520558		Bracket, Ovc Support				$ 28.65
21	5304523582		Housing, Controller			Immediately	$ 37.92
97	316475807		Board Assembly, Ovc2 Pcba, W/chassis				$ 566.94
2A	5304521623		Shield, Wire, Top				$ 107.02
2B	5304520853		Cover, Control Access				$ 64.34
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	5304526698		Harness, Wiring, Ovc To, Control Panel				$ 17.69
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5304514831		Harness, Grounding Wire				$ 12.64
NI	5304514832		Harness, Wiring, Upper Oven, Hall Effect				$ 57.30
NIA	5303323129		Screw, 8 X 0.750		Appelez-nous	-
