SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts

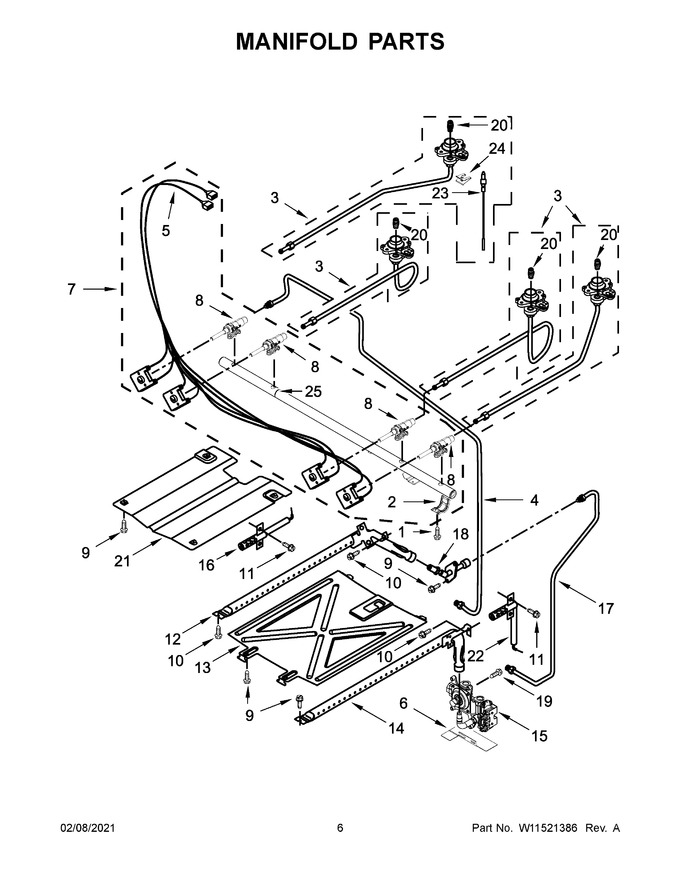

04 - Manifold Parts


05 - Chassis Parts


06 - Drawer And Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
3	W11367452		Orifice Holder Assembly (left Front)		Appelez-nous	-
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 159.35
5	W11256561		Harness, Switch   (Replaces: W10812380)				$ 190.30
6	W10224921		Bracket, Aegis		Appelez-nous	-
7	W11347743		Manifold Assembly		Appelez-nous	-
8	W11628784		Valve, Gas (left Front, Right Front)   (Replaces: W11352012)				$ 80.44
9	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
10	3196265		Screw		Appelez-nous	-
11	W11684507		Screw   (Replaces: 3196385)				$ 14.27
12	WP8054078		Burner, Broiler   (Replaces: 8054078)				$ 239.36
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	W11449506		Regulator   (Replaces: W11370883)				$ 201.69
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	W10420040		Tube, Broiler Supply				$ 194.54
18	W11435700		Fitting, Broiler				$ 89.09
19	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
20	W11428753		Orifice (15k) (left Front, Right Front)			Immediately	$ 83.27
21	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
22	W11524031		Igntr-oven   (Replaces: W11450459)			Immediately	$ 56.90
23	W11453940		Electrode (left Front, Left Rear)   (Replaces: W11428831)				$ 64.46
24	W11684564		Spring, Electrode (left Front, Left Rear, Right Front, Right Rear)   (Replaces: W10827923)			Immediately	$ 12.65
25	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 7.30
20A	W10849720		Orifice (10k) (left Rear)				$ 82.45
20B	W11677633		Orifice (5k) (right Rear)   (Replaces: W10849719)				$ 99.15
23A	W11453920		Electrode (right Front, Right Rear)   (Replaces: W11428858)				$ 64.35
3A	W11367453		Orifice Holder Assembly (left Rear)		Appelez-nous	-
3B	W11367455		Orifice Holder Assembly (right Front)		Appelez-nous	-
3C	W11367454		Orifice Holder Assembly (right Rear)		Appelez-nous	-
8A	W11699929		Valve, Gas (left Rear)   (Replaces: W11352013)				$ 70.47
8B	W11352015		Valve, Gas (right Rear)				$ 113.04
NI	NP		Pedestal (refer To Color Variation Parts Page)		Appelez-nous	-
NI	W11475512		Lp Conversion Kit   (Replaces: W11414603)				$ 88.05
NI	W10758273		Orifice, Lp Broil   (Replaces: W10465080)				$ 8.53
NI	W11126051		Lp Bake And Broil Kit   (Replaces: W10566537)				$ 129.04
NI	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 94.32

    View Diagram in Separate Window       Print Part List
