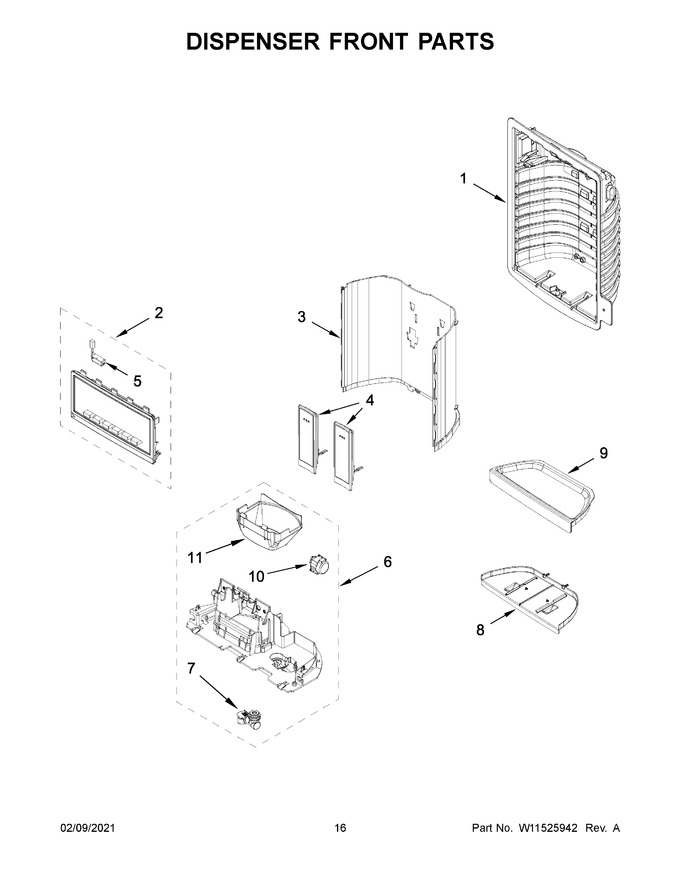

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Pedestal (refer To Color Variation Parts Page)		Appelez-nous	-
2	W11284720		Assembly, User Interface (includes Light Feature)   (Replaces: W11114471)				$ 349.20
3	W11045975		Wall, Dispenser False (white)		Appelez-nous	-
4	W10353846		Assembly, Pad (white)				$ 266.68
5	W11290115		Assembly, Led   (Replaces: W10238083)				$ 80.43
6	WPW10353552		Assembly, Separator (includes Spigot And Ice Guide)   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 129.89
8	W10267860		Tray, Dispenser Slide (white)		Appelez-nous	-
9	W11045970		Tray, Dispenser (white)				$ 62.79
10	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 102.48
11	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 22.80
3A	W11045976		Wall, Dispenser False (black)				$ 41.12
4A	W11661207		Assembly, Pad (black)   (Replaces: W10353847)				$ 63.04
8A	W10267861		Tray, Dispenser Slide (black)				$ 70.85
9A	W11045971		Tray, Dispenser (black)				$ 62.76

    View Diagram in Separate Window       Print Part List
